- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      001736
Model:      1110YF1A Ratio:      4.926:1
MO# or S/N      8-065876-01 Alt. S/N
IP Speed      1150 RPM HP rating      350 HP Cat. Rating
OP Speed:      233.5 RPM SF / SC      2.0 - SF
Date       Oil Capacity      18 US Gals
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      186,000 Lb-Inches Shaft Diameters High Speed:  3.250
Low Speed:  5.500
Weight      2800 Lbs Approx. Assembly      Parallel, Assembly #19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.926:1

350 RPM
1049 HP
1430 RPM
280 RPM
874 HP
1170 RPM
230 RPM
728 HP
870 RPM
175 RPM
554 HP
720 RPM
140 RPM
465 HP
580 RPM
115 RPM
381 HP
Notes:
Condition: GOOD



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

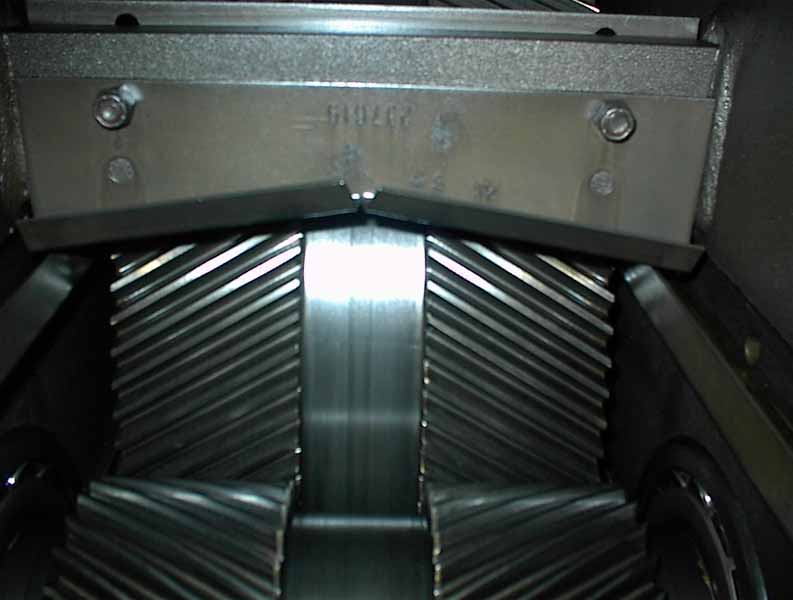

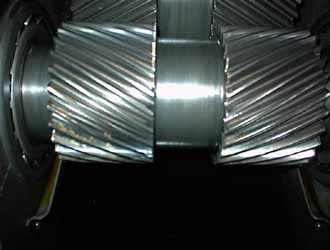

Click on images for larger view.
