Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR      Our ID No.   005135
Model No:   Q-200-B-010-M-056-K1 Ratio:  10
S/N  MR94760 Center Distance  2.00
IP Speed  1750 HP rating
OP Speed:   SF / SC  1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating  632 Lb-Inches Shaft Diameters High Speed:  56
Low Speed: 1.00
Weight  28 Lbs Approx. Assembly  K1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10:1

175 RPM
2.04 HP
1170 RPM
117 RPM
1.51 HP
RPM
RPM
HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

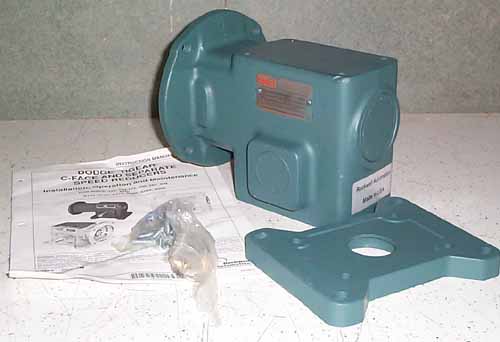

Click on images for larger view.
