- Speed Reducer Data Sheet -

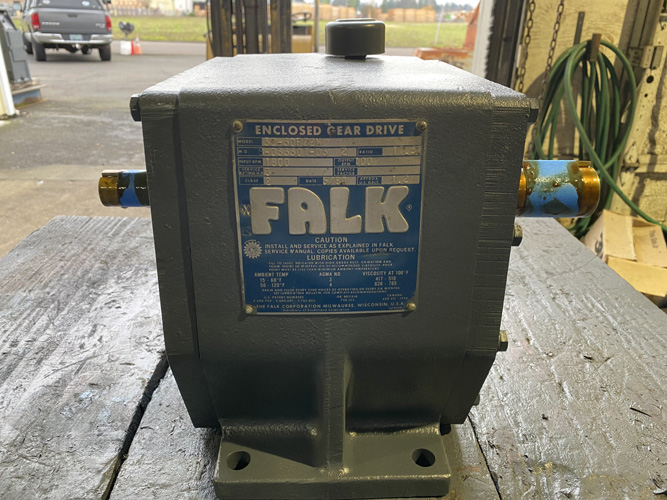

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005313
Model:      32-30FZ2M     (1030FZ2A) Ratio:      17.37:1
MO# or S/N      8-033307-03 Alt. S/N
IP Speed      1800 RPM HP rating      3 HP Cat. Rating
OP Speed:      100 RPM SF / SC      Class II
Date      5/80 Oil Capacity      1.2
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      5,030 Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  1.750
Weight      150 Lbs Approx. Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
17.37:1

100
8.05 HP
1430
84
6.62 HP
1170
68
5.44 HP
870
50
4.08 HP
720
42
3.39 HP
580
34
2.74 HP
Notes:

Condition: NEW SURPLUS
