Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      SEW-EURODRIVE Our ID No.      005674 (4 each)
Model:      R163DV160L-4TF Ratio:      101.62:1
MO# or S/N      010221814.3.01.03003 Alt. S/N
IP Speed      1760 RPM HP rating      20 HP (15kW) Cat. Rating      38.21 HP
OP Speed:      17 RPM SF / SC      1.90 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      74,100 Lb-Inches Shaft Diameters High Speed:  Gearmotor
Low Speed:  120mm (4.7244")
Weight      2,000 Lbs Approx. Assembly
Notes:
Condition:
Quantity of 4 units
Used, Good takeouts

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

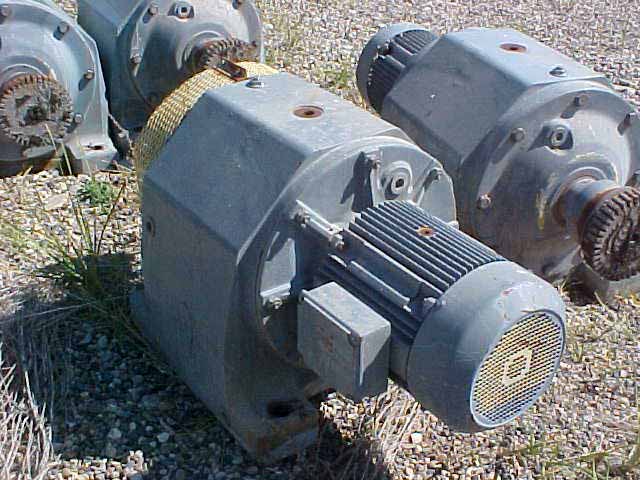

Click on images for larger view.
