Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005677
Model:      2170YN2B Ratio:      30.57:1
MO# or S/N      8-969675 Alt. S/N
IP Speed      1170 RPM HP rating      300 HP Cat. Rating
OP Speed:      38.3 RPM SF / SC      1.85 SF
Date      7/89 Oil Capacity      146 US Gals Approx.
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,205,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  9.250
Weight      16,000 Lbs Approx. Assembly       Assembly #18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
30.57:1

56 RPM
883 HP
451 HP
1430 RPM
45 RPM
740 HP
625 HP
1170 RPM
37 RPM
620 HP
Thermal Exceeds Mechanical
870 RPM
28 RPM
476 HP
Thermal Exceeds Mechanical
720 RPM
22 RPM
402 HP
Thermal Exceeds Mechanical
580 RPM
18 RPM
330 HP
Thermal Exceeds Mechanical
Notes:
Condition:

Used, Good

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.

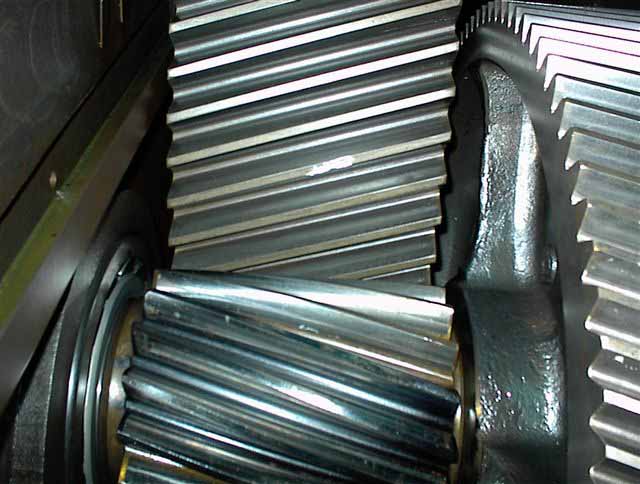

High Speed Gearing

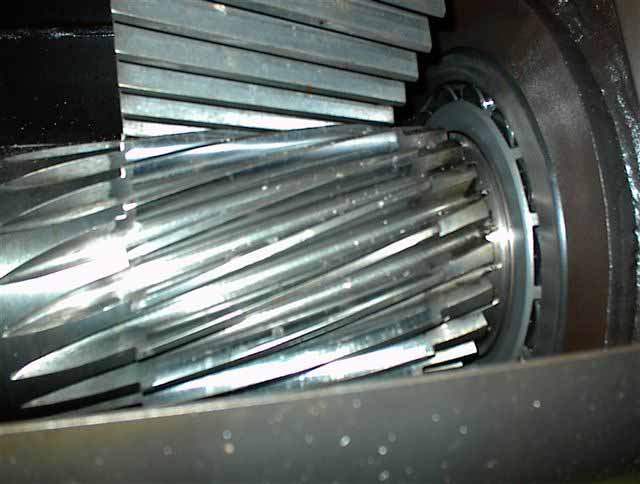

Low Speed Gearing
