Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

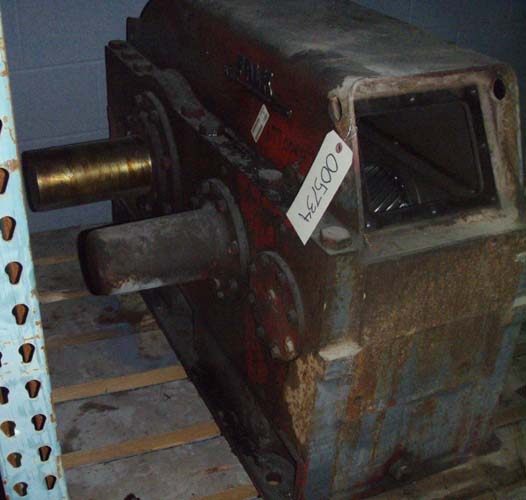

Manufacturer:      FALK Our ID No.      005734
Model:      1100YF-1 Ratio:      3.057:1
MO# or S/N      7-359930-01 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity      14
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      154,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2250 Lbs. Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
3.057:1

520
1257 HP
221 HP
1430
420
1048 HP
359 HP
1170
350
874 HP
459 HP
870
260
667 HP
515 HP
720
210
560 HP
528 HP
580
175
458 HP
-
Notes:
