Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

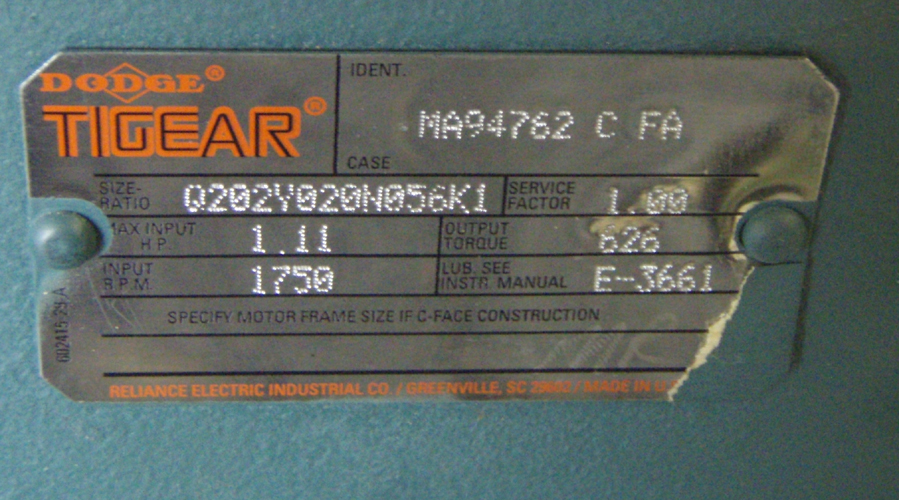

N A M E P L A T E       D A T A
Manufacturer:      DODGE TIGEAR      Our ID No.  005858
Model No:  Q202Y020N056K1
 Q200B020N056K1 		Ratio:  20
S/N  MA94762 C FA
 MR94762 		Center Distance  2.0
IP Speed  1750 HP rating  1.11
OP Speed:   SF / SC  1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating  626 Lb-Inches Shaft Diameters High Speed:  0.625
Low Speed:  1.000
Weight   Lbs Approx. Assembly
Notes:
   Unused Surplus
 Longer then standard LS Shaft (no extra charge)

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
