N A M E P L A T E       D A T A

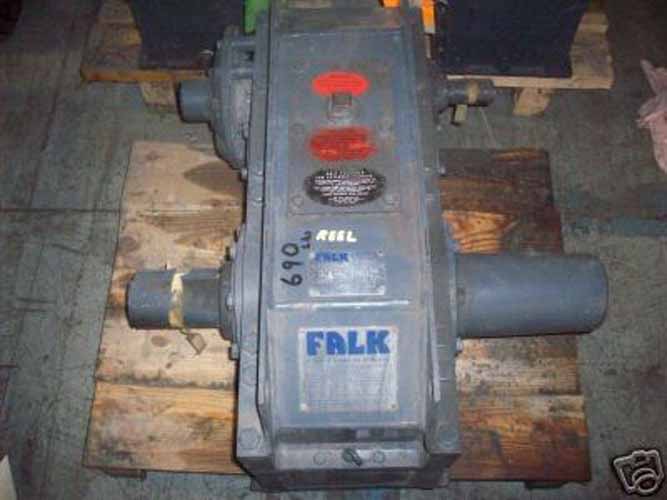

Manufacturer:      FALK Our ID No.      005982
Model:      2060Y2-LR Ratio:      13.61
MO# or S/N      94-071451-01 Alt. S/N
IP Speed      1750 RPM HP rating      50 HP Cat. Rating
OP Speed:      128.6 RPM SF / SC      1.58 SF
Date      11-94 Oil Capacity      4.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      26,800 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  3.000
Weight      580 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
13.61

125 RPM
78.9 HP
1430 RPM
100 RPM
65.9 HP
1170 RPM
84 RPM
55 HP
870 RPM
62 RPM
42 HP
720 RPM
50 RPM
35.3 HP
580 RPM
42 RPM
28.9 HP
Notes:
Condition: NEW SURPLUS
