- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005984
Model:      2050Y1-LD Ratio:      1.880
MO# or S/N      94-071450-01 Alt. S/N
IP Speed      1257 RPM HP rating      75 HP Cat. Rating
OP Speed:      668 RPM SF / SC      3.16 SF
Date      11-94 Oil Capacity      2.6
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      20,300 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1.880

950 RPM
300 HP
1430 RPM
780 RPM
260 HP
1170 RPM
640 RPM
226 HP
870 RPM
470 RPM
169 HP
720 RPM
390 RPM
140 HP
580 RPM
320 RPM
113 HP
Notes:

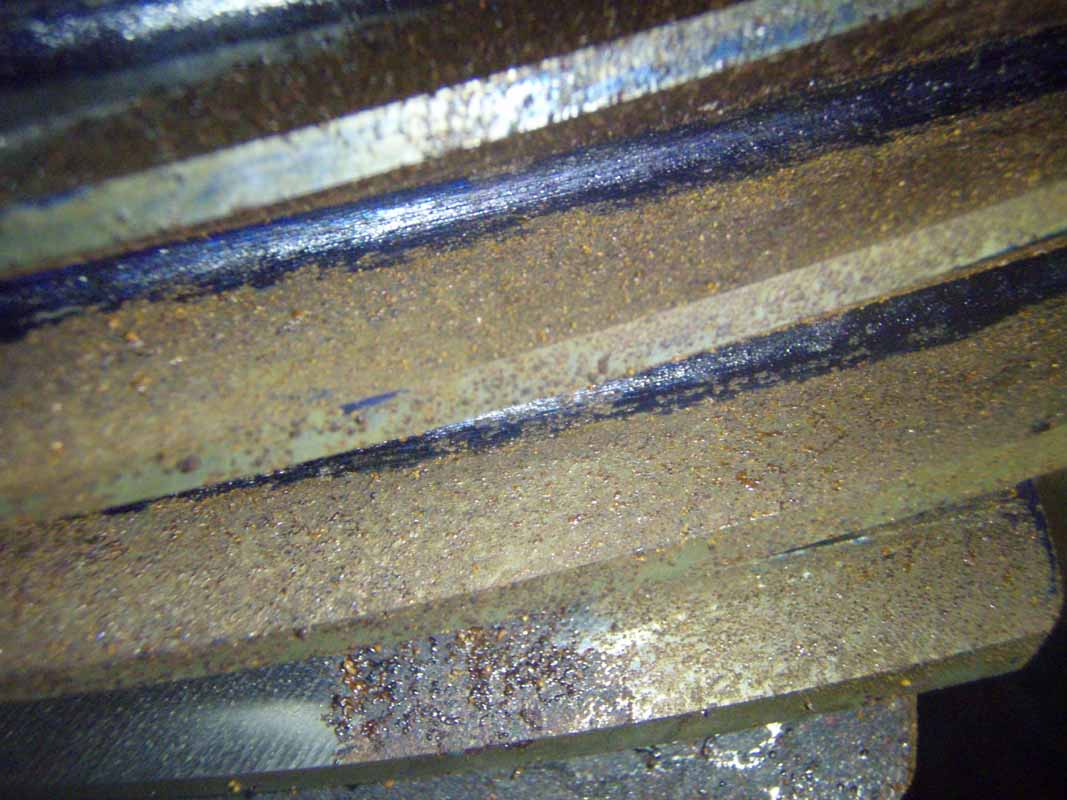

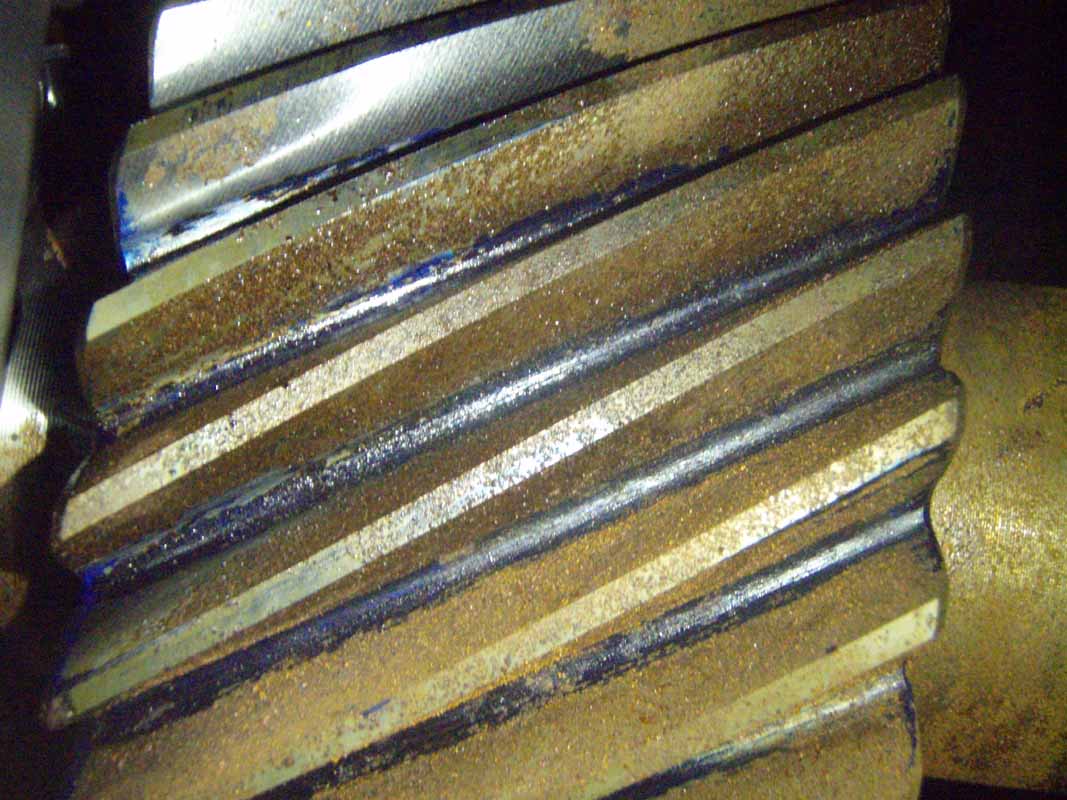

Condition: Gears rusty, see pictures
