Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

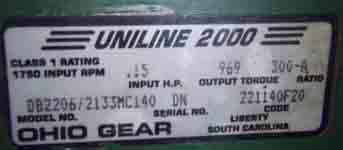

N A M E P L A T E       D A T A

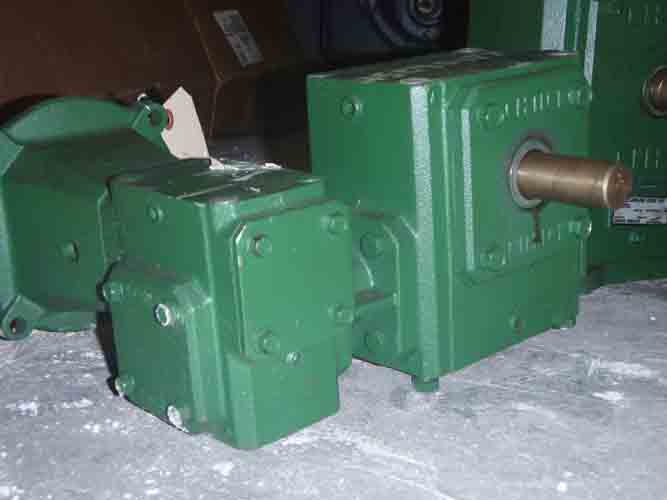

Manufacturer:      OHIO GEAR     UNILINE 2000 SERIES Our ID No.      006052
Model No:      DB2206/2133 MC140 Ratio:      300 (P=15:1 / S=20:1)
S/N      DN 221140F20 Center Distance      P=1.33 / S=2.06
IP Speed      1750 HP rating      0.15
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      969 Lb-Inches Shaft Diameters High Speed:  140TC (0.500)
Low Speed:  1.000
Weight      65 Lbs Approx. Assembly      A
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
300:1

5.83 RPM
0.150 HP
1170 RPM
3.83 RPM
0.121 HP
870 RPM
2.90 RPM
0.095 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
