Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

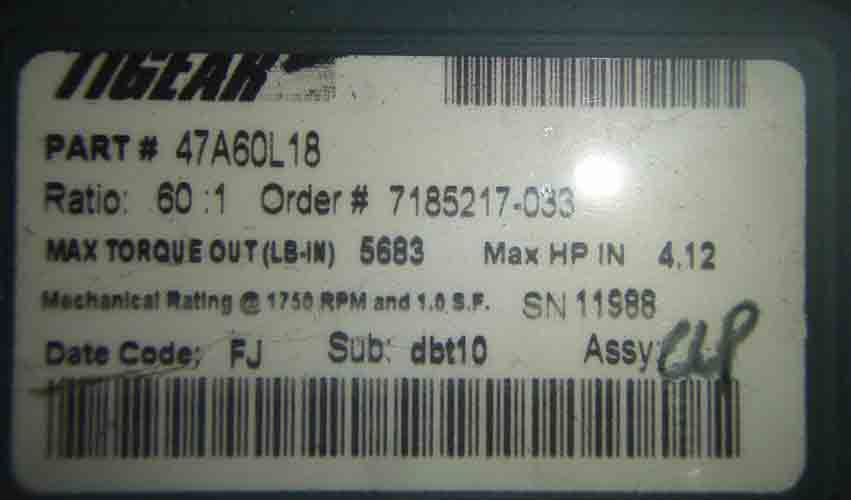

N A M E P L A T E       D A T A
Manufacturer:      Dodge Tigear 2 Our ID No.      006236
PART No.      47A60L18     (47S60L) Ratio:      60:1
ORDER #      7185217-033 S/N      11988
IP Speed      1750 RPM HP rating      4.12 HP
OP Speed:      29 RPM SF / SC      1.0 - SF
Torque Rating      5,683 Lb-Inches Shaft Diameters High Speed:   180TC (1.125)
Low Speed:   2.000
Weight      230 Lbs Approx. Assembly      Worm Over, Left Hand
Notes:
Unused Surplus Stock
High Speed connection uses a Lovejoy # L-099 Coupling, 1.125 Reducer Hub x 1.125 Motor Hub with an L-099/L-100 Spider
Unit can be used without a mounting base, it has drilled and tapped mounting holes.
Unit is furnished without a mounting base, order your requirement as per the following:
For the TIGEAR-2 Bolt on Base Kit, order: "47BASE"
For the TIGEAR-2 J-Mount Base Kit, order: "47JMOUNT"
For the TIGEAR-2 Riser Block Kit, order: "47RISER"
To change assembly to the opposite hand, order the Output Shaft Reversal Kit "47SHAFTREV"
