- Speed Reducer Data Sheet -

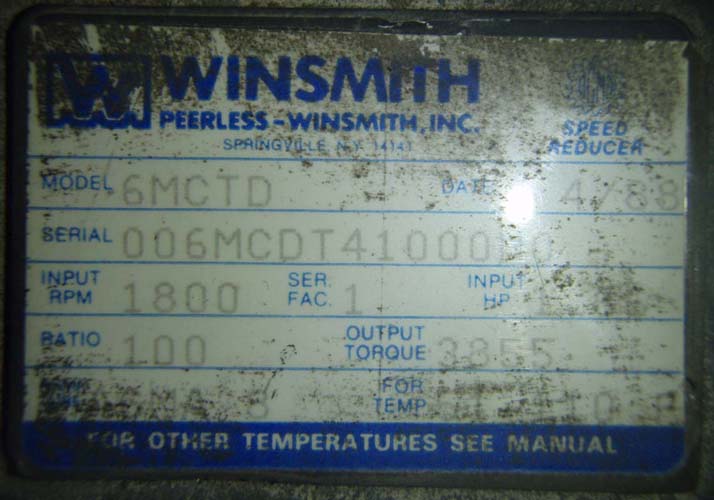

N A M E P L A T E       D A T A

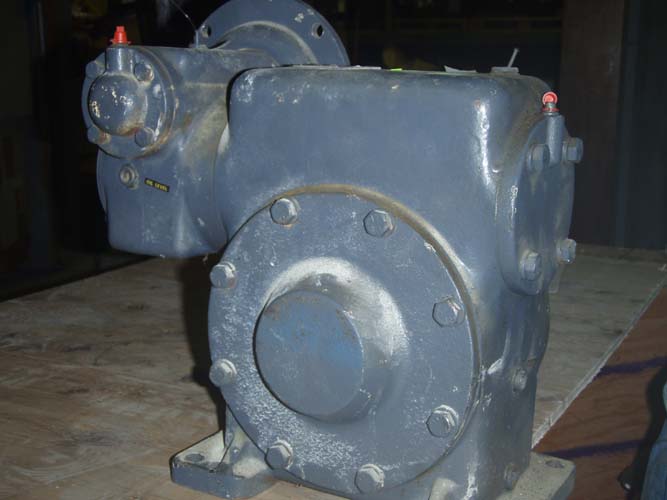

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006276
Model:      6MCTD Ratio:      100
S/N      006MCDT41000 0 Center Distance      P=2.00
     S=3.50
IP Speed      1750 HP rating      1.66
OP Speed:      18 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      3,855 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.500
Weight      80 Lbs Approx. Assembly      LU-L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
100:1

18 RPM
1.66 HP
1170 RPM
12 RPM
1.24 HP
Notes:
   Unused surplus
