Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

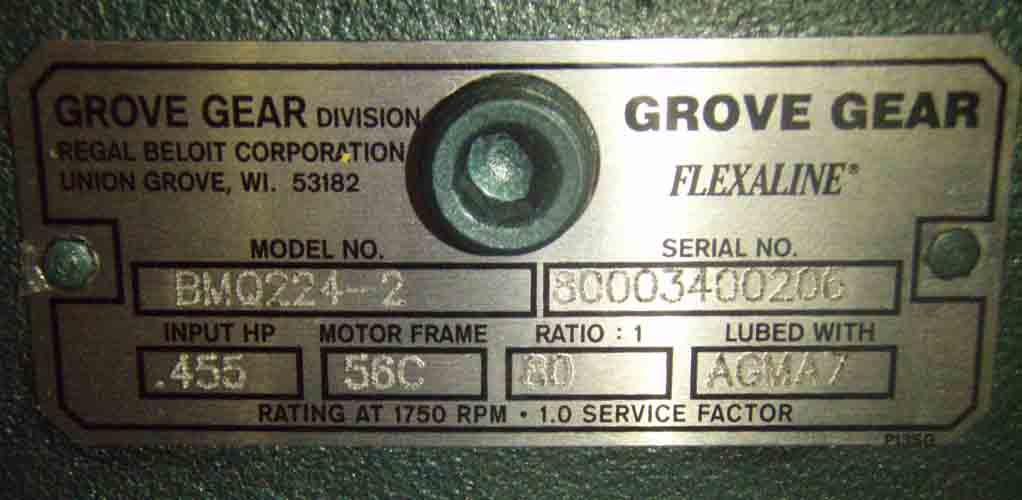

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.      006311
Model No:      BMQ224-2 Ratio:      80
S/N      80003400206 Center Distance      2.38
IP Speed      1750 HP rating      0.455
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      830 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.125
Weight      50 Lbs Approx. Assembly      2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
80 :1

21 RPM
0.455 HP
1170 RPM
14 RPM
0.370 HP
870 RPM
11 RPM
0.309 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

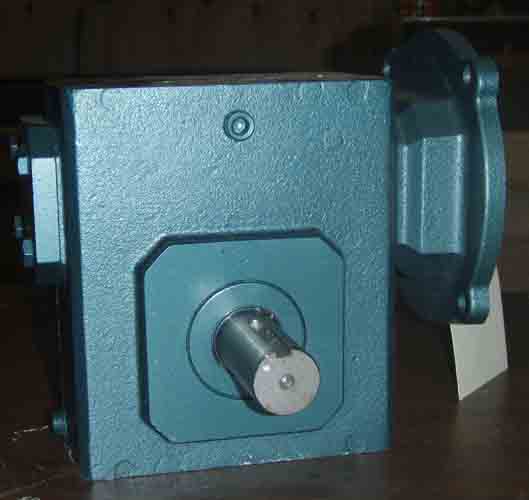

Click on images for larger view.
