Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

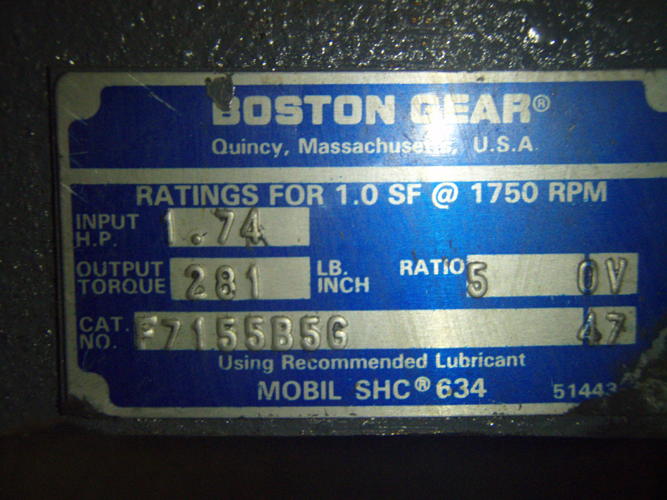

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006483
Model:      F715-5-B5-G Ratio:      5
IP Speed      1750 HP rating      1.74
OP Speed:      350 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       281 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  0.750
Weight      18 Lbs Approx. Center Distance      1.54
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5

350 RPM
1.74 HP
1170 RPM
230 RPM
1.15 HP
870 RPM
RPM
HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

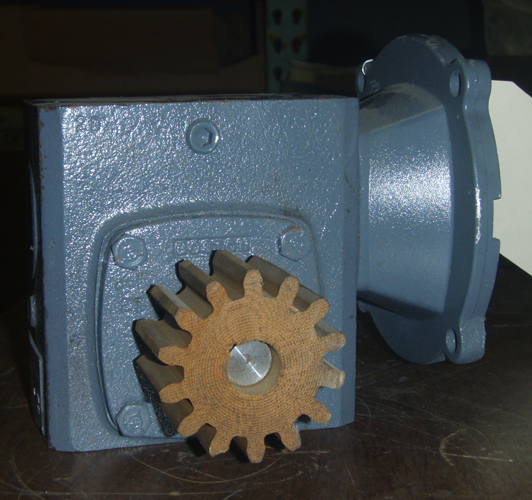

Click on images for larger view.
