Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

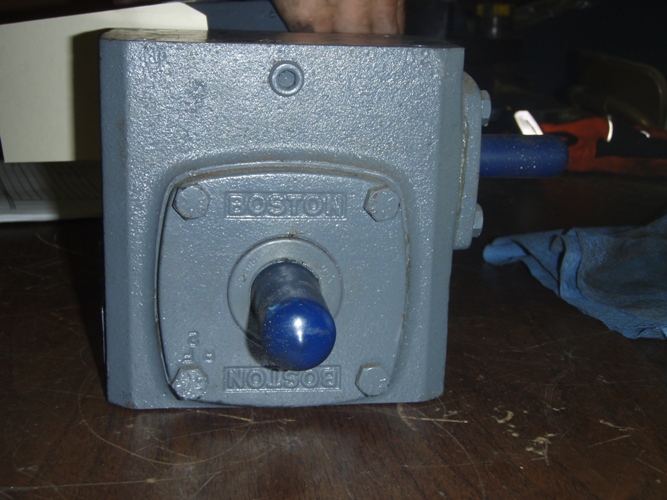

Manufacturer:      BOSTON GEAR Our ID No.      006484
Model:      718-60-G Ratio:      60
IP Speed      1750 HP rating      0.32
OP Speed:      29.2 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      410 Lb-Inches Shaft Diameters High Speed:  0.625
Low Speed:  0.875
Weight      20 Lbs Approx. Center Distance      1.75
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60

29.2 RPM
0.32 HP
1170 RPM
19.2 RPM
0.21 HP
870 RPM
RPM
HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
