- Speed Reducer Data Sheet -

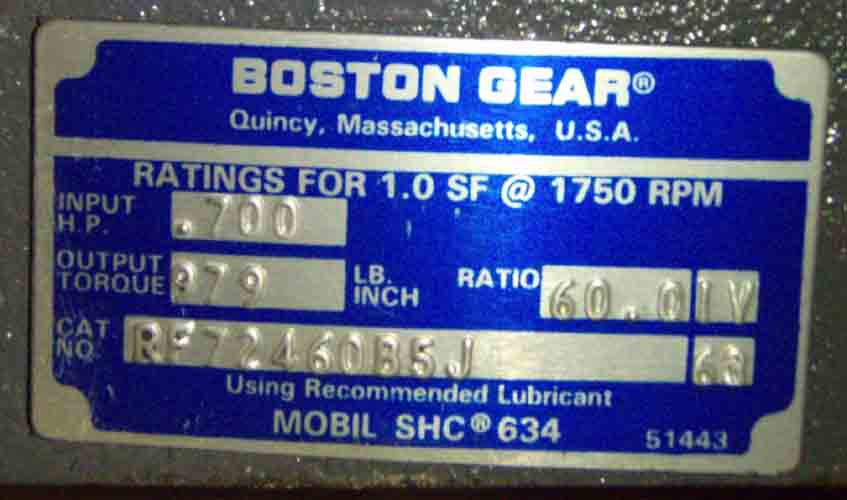

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006579
Model:      RF724 60 B5 J Ratio:      60:1
IP Speed      1750 RPM HP rating      0.70
OP Speed:      29 RPM SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      979 Lb-Inches Shaft Diameters High Speed:  0.750 56C
Low Speed:  1.125
Weight      40 Lbs Approx. Center Distance      2.38
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60:1

29 RPM
0.70 HP
1170 RPM
19 RPM
0.49 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

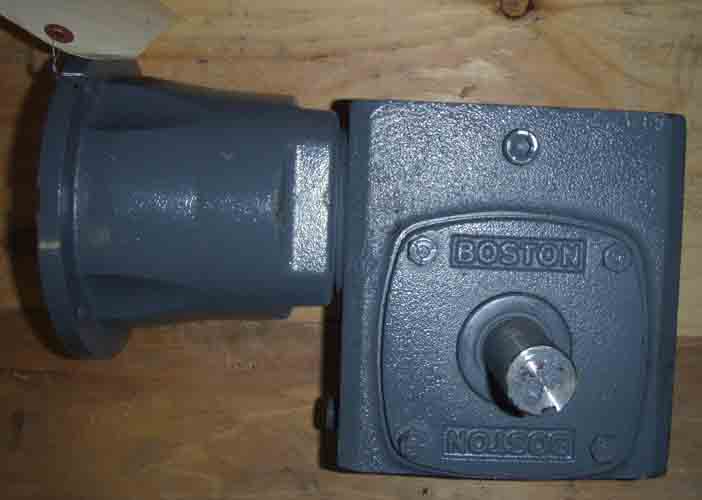

Click on images for larger view.
