Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006609
Model:      53-4EBZ3-16B8 Ratio:      37.54
MO# or S/N      78320-20110 Alt. S/N
IP Speed      1750 HP rating      5 Cat. Rating      SEE BELOW
OP Speed:      45 SF / SC      III 3
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      14,600 Lb-Inches Shaft Diameters High Speed:  1.375
Low Speed:  2.500
Weight      550 Lbs Approx. Assembly      Assembly 1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
37.54:1

45 RPM
10.3 HP
1430 RPM
37 RPM
8.47 HP
1170 RPM
30 RPM
6.92 HP
870 RPM
22 RPM
5.15 HP
720 RPM
18 RPM
4.26 HP
580 RPM
Notes:
Condition:


NEW SURPLUS
Low speed head can be rotated at 90 degrees to match your requirement
7.51-4EBZ3-16B8
101-4EBZ3-16B8
52-4EBZ3-16B8
7.52-4EBZ3-16B8
33-4EBZ3-16B8
53-4EBZ3-16B8
4EBZ3-16B8
4EB3-16B8
4EBM3-16B8

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

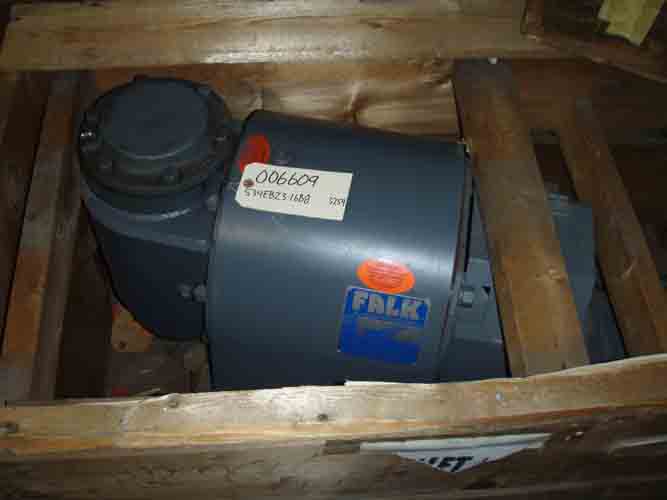

Click on images for larger view.
