Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006619
Model:      F721-15-B5-H Ratio:      15
IP Speed      1750 HP rating      1.40
OP Speed:      116.7 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      646 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.000
Weight      25 Lbs Approx. Center Distance      2.06
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15

116.7 RPM
1.40 HP
1170 RPM
76.7 RPM
1.06 HP
870 RPM
RPM
HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

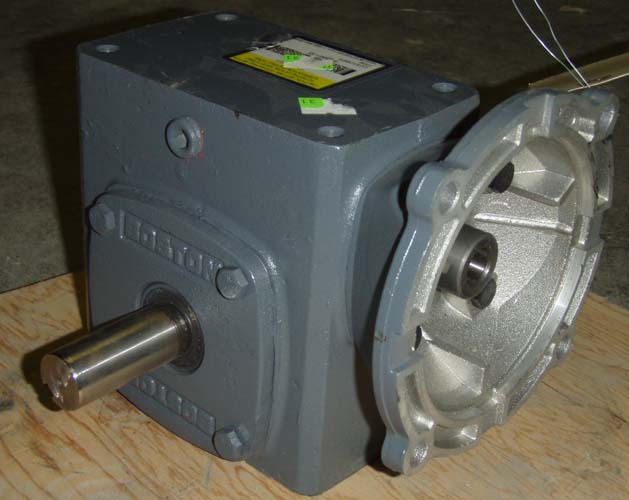

Click on images for larger view.
