- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

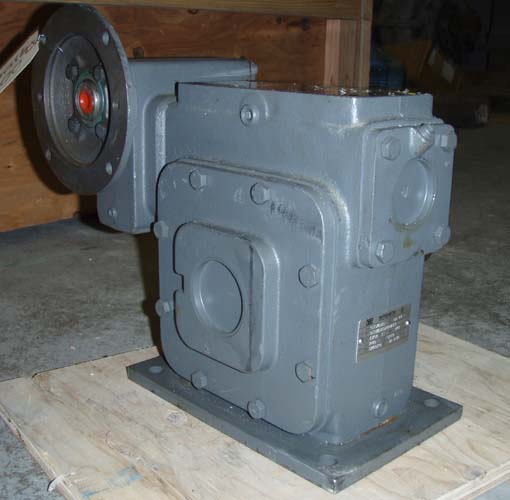

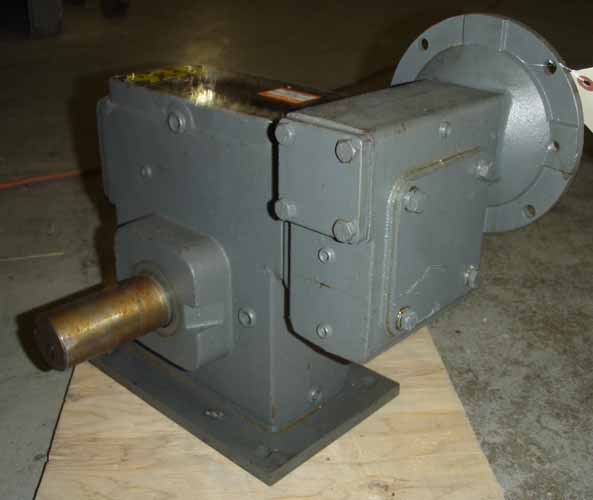

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.      006673
Model:      935MDTD Ratio:      200
P=10 / S=20
S/N      935MDTD7100LLC Center Distance      P=2.00 / S=3.50
IP Speed      1750 HP rating      0.948
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      5,210 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.750
Weight      110 Lbs Approx. Assembly      RU-L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200:1

8.75 RPM
1.13 HP
1170 RPM
5.80 RPM
0.796 HP
Notes:
   UNUSED
