Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      006677
Model No:      1325WOWM2A Ratio:      150
S/N      44007280507 Center Distance      P=1.54
     S=3.25
IP Speed      1750 HP rating      1.28
OP Speed:      11.7 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      4,500 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.375
Weight      120 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150 :1

11.7 RPM
1.28 HP
1170 RPM
7.8 RPM
0.98 HP
870 RPM
5.8 RPM
0.78 HP
Notes:
   UNUSED SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

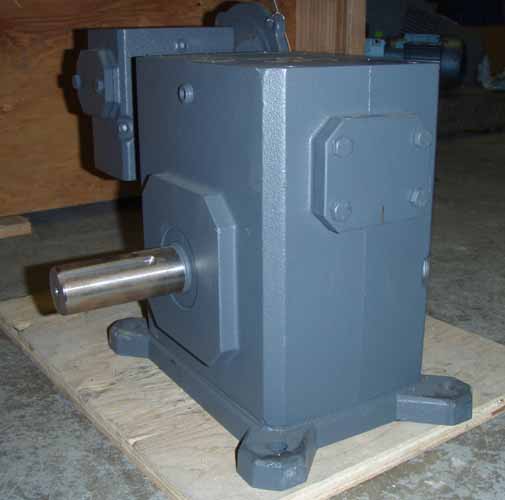

Click on images for larger view.
