Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

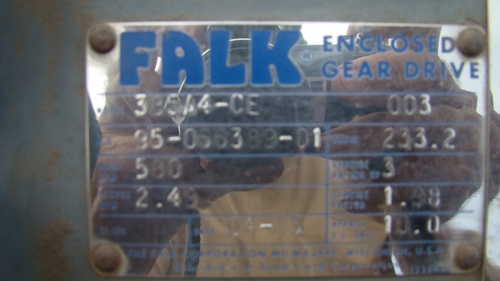

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006737
Model:      385A4-CE 003 Ratio:      233.2
MO# or S/N      95-066389-01 Alt. S/N
IP Speed      580 HP rating      3 Cat. Rating
OP Speed:      2.49 SF / SC      1.98
Date      04/95 Oil Capacity      10.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      150,000 Lb-Inches Shaft Diameters High Speed:  1.500  Solid
Low Speed:  4.500  Solid
Weight      1,560 Lbs Approx. Assembly      29
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
233.2

7.5 RPM
17.9 HP
36.8 HP
1430 RPM
6.0 RPM
14.6 HP
34.4 HP
1170 RPM
5.0 RPM
12.0 HP
32.4 HP
870 RPM
8.89 RPM
3.8 HP
29.1 HP
720 RPM
7.36 RPM
3.0 HP
27.5 HP
580 RPM
5.93 RPM
2.5 HP
26.0 HP
Notes:
Condition: NEW SURPLUS
