- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.      006873
Model:      385A2-AB Ratio:       19.71
MO# or S/N       8-665981 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating      188
OP Speed:       88.8 SF / SC
Date       Oil Capacity       8
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      133,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  4.500
Weight       1600 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
19.71

84 RPM
188 HP
1430 RPM
68 RPM
154 HP
1170 RPM
56 RPM
127 HP
870 RPM
42 RPM
94.5 HP
720 RPM
34 RPM
78.3 HP
580 RPM
28 RPM
63 HP
Notes:
Condition: USED SURPLUS GEARING VERRY GOOD



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

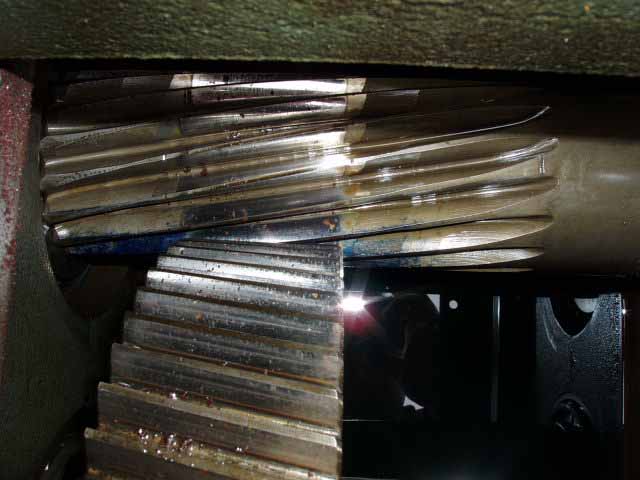

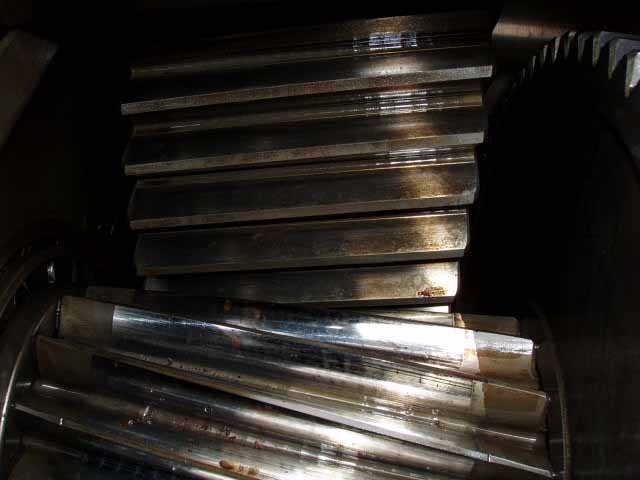

Click on images for larger view.
