Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      007172
Model:      1130YF1LS Ratio:      3.344:1
MO# or S/N      8-868130 Alt. S/N
IP Speed      817 RPM HP rating       HP Cat. Rating
OP Speed:      244.318 RPM SF / SC      1.60 - SF
Date      4/88 Oil Capacity      35.5 Gals
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      345,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight      5,500 Lbs Approximate Assembly      Assembly 11
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
3.344:1

520 RPM
2,865 HP
1430 RPM
420 RPM
2,394 HP
1170 RPM
350 RPM
2,000 HP
870 RPM
260 RPM
1,530 HP
720 RPM
210
1,288
580 RPM
175
1,057
Notes:
Condition: USED EXCELLENT



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

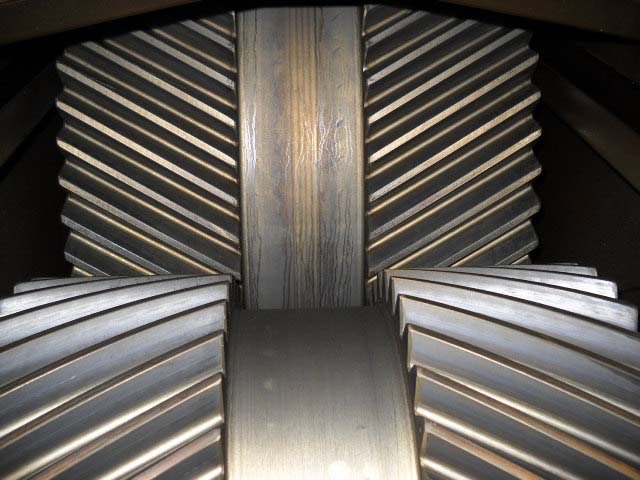

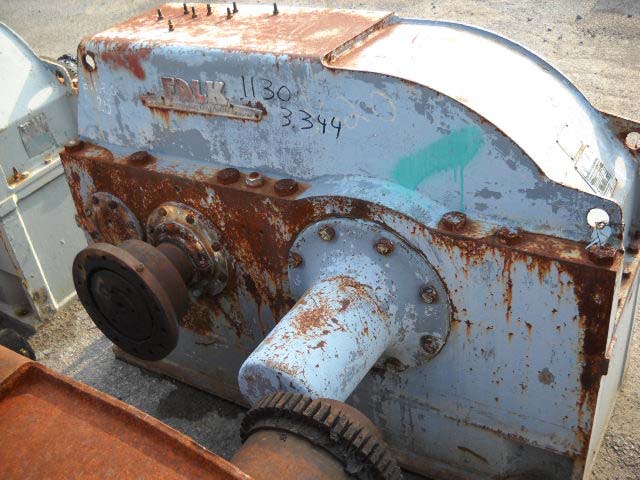

Click on images for larger view.
