- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK RAM Right Angle Mixer Drive Our ID No.      007206
Model:      900MDXDM2AS
     900MDXD2A
     800MDXDM2A
     800MDXD2A
     388AFXD2A
Ratio:      24.82
MO# or S/N      05-032136-01 Alt. S/N
IP Speed      1170 HP rating      75 Cat. Rating
OP Speed:      47.1 SF / SC
Date       Oil Capacity      41.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      163,000 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  7.000
Weight       4,500 Lbs Approx. Assembly
H.S. Shaft
RPM
Ratio Approx. L.S.
Shaft RPM
HP
Ratings
1750 RPM
24.82:1

68 RPM
183 HP
1430 RPM
56 RPM
150 HP
1170 RPM
45 RPM
123 HP
870 RPM
34 RPM
91.5 HP
720 RPM
28 RPM
75.9 HP
580 RPM
22 RPM
61.2 HP
Notes:
Condition:
USED - Good take out
Unit is Name-Plated as a Mixer Drive 900MDXD2A but this is also a 800MDXD2A Mixer Drive and the Industrial Drive Version 388AFXD2A. The HP listings shown above are for the Industrial Drive Version. Even though The Mixer Drive and Industrial Version are identical units they use different criteria to establish their ratings.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

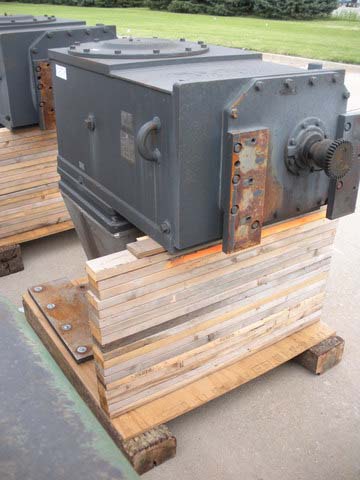

Click on images for larger view.
