- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      HUBCITY Our ID No.       007251
Model:       920 Ratio:       4.11:1
Assembly Number       0221-14596 Style (Assembly)
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       9780 Lb-Inches Shaft Diameters High Speed:   1.250
Low Speed:   2 7/16
Weight       175 Lbs Approx.
H.S. Shaft
RPM		 HP
Ratings
1750 RPM
66 HP
1170 RPM
44 HP
870 RPM
35 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

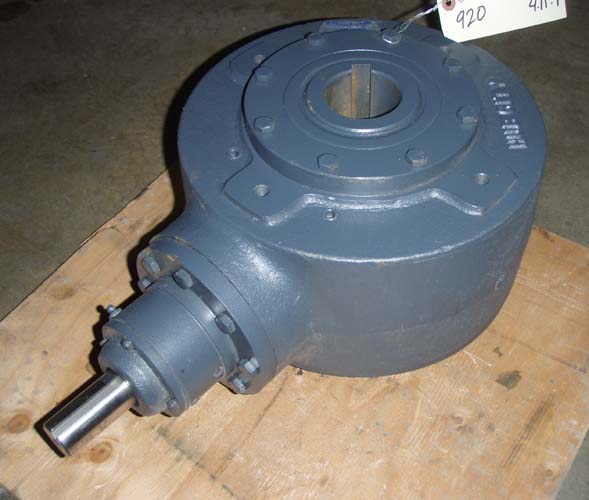

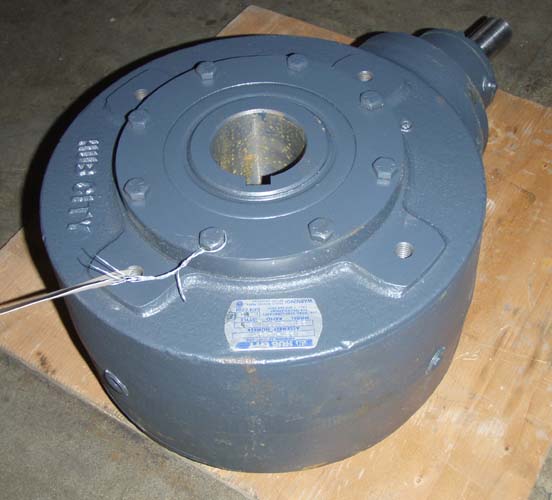

Click on images for larger view.
