- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       007325
Model:       75EBZ3-16B6 Ratio:       31.77
MO# or S/N       7-138991 Alt. S/N
IP Speed       1750 HP rating       Cat. Rating
OP Speed:       55 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       80100 Lb-Inches Shaft Diameters High Speed:   2.125
Low Speed:   4.375
Weight       2100 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
31.77:1

56 RPM
70.0 HP
1430 RPM
45 RPM
59.0 HP
1170 RPM
37 RPM
49.0 HP
870 RPM
28 RPM
37.5 HP
720 RPM
22 RPM
31.5 HP
Notes:
Condition:


REBUILT 6/05

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

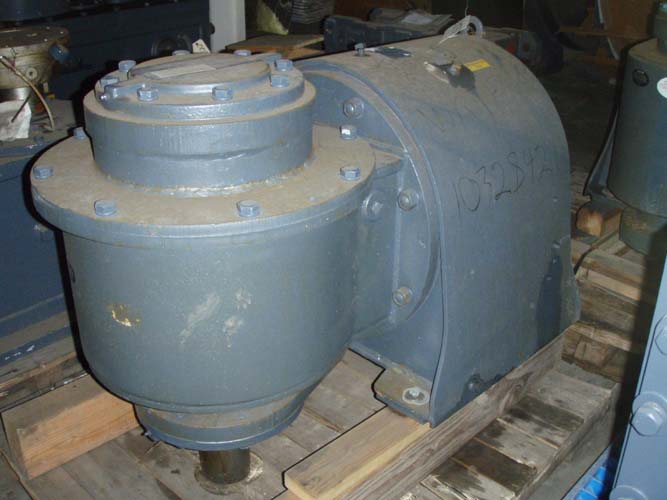

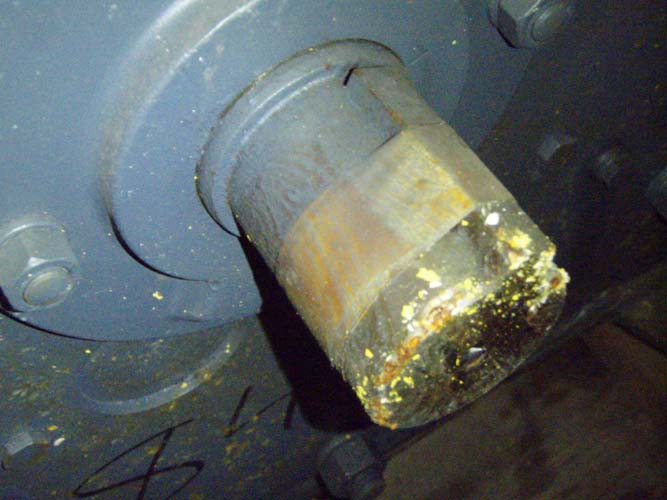

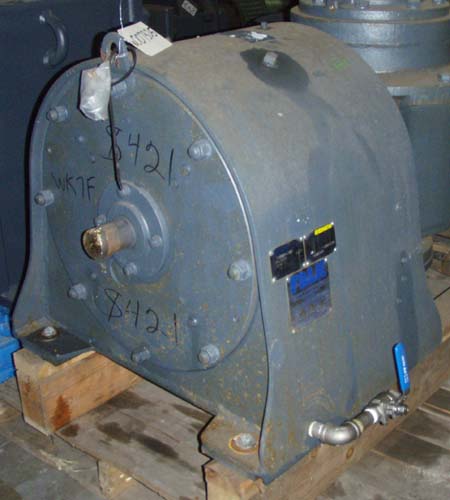

Click on images for larger view.
