- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       FLENDER HIMMEL Our ID No.       007539
Model:       Z168-P513651 Ratio:       29.27
MO# or S/N       610-615M Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       123,868 Lb-Inches Shaft Diameters High Speed:   2.375   5/8 K.W.
Low Speed:   4.000    1" K.W.
Weight       1200 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
29.27:1

59 RPM
115 HP
1170 RPM
40 RPM
78 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

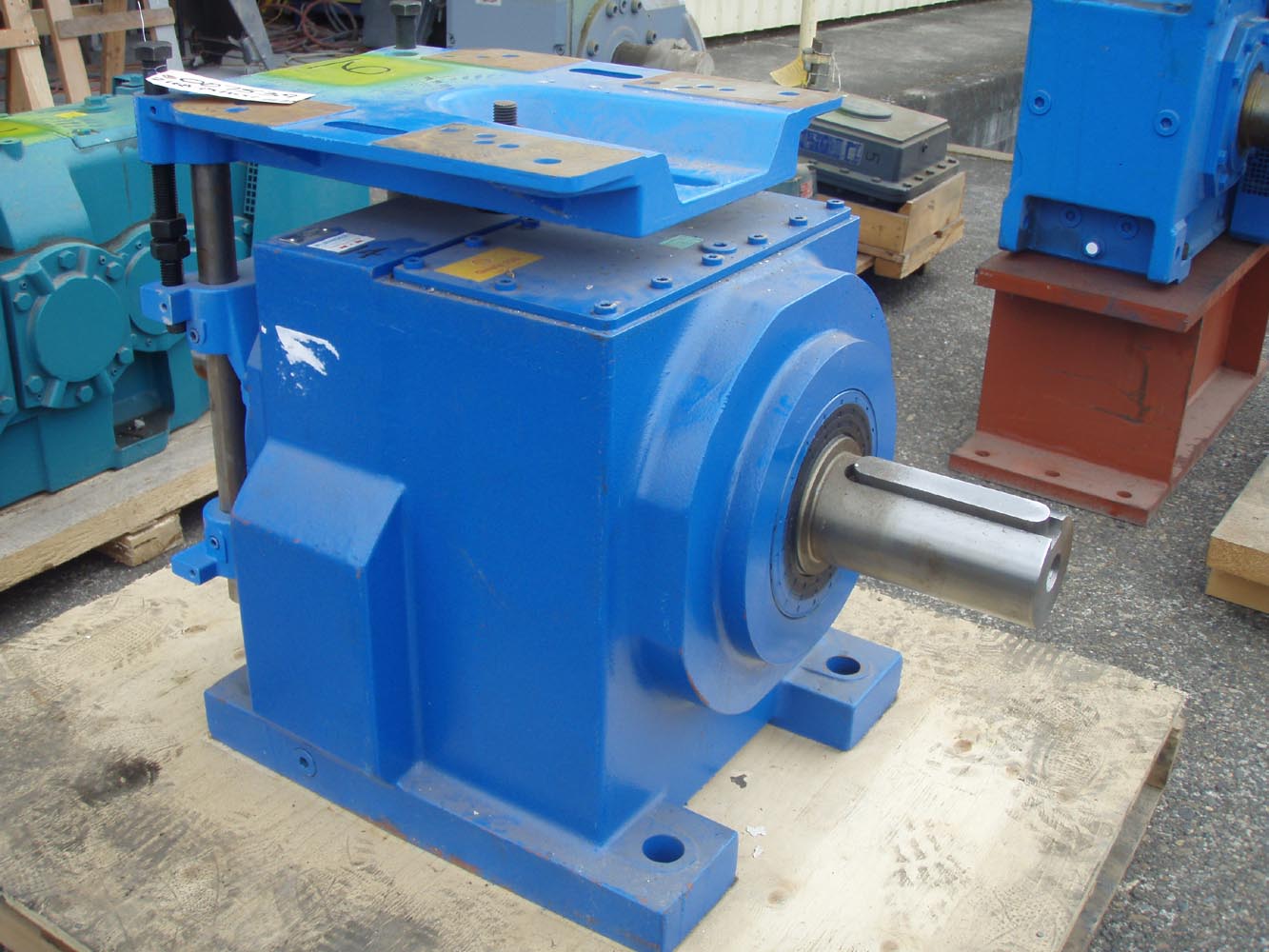

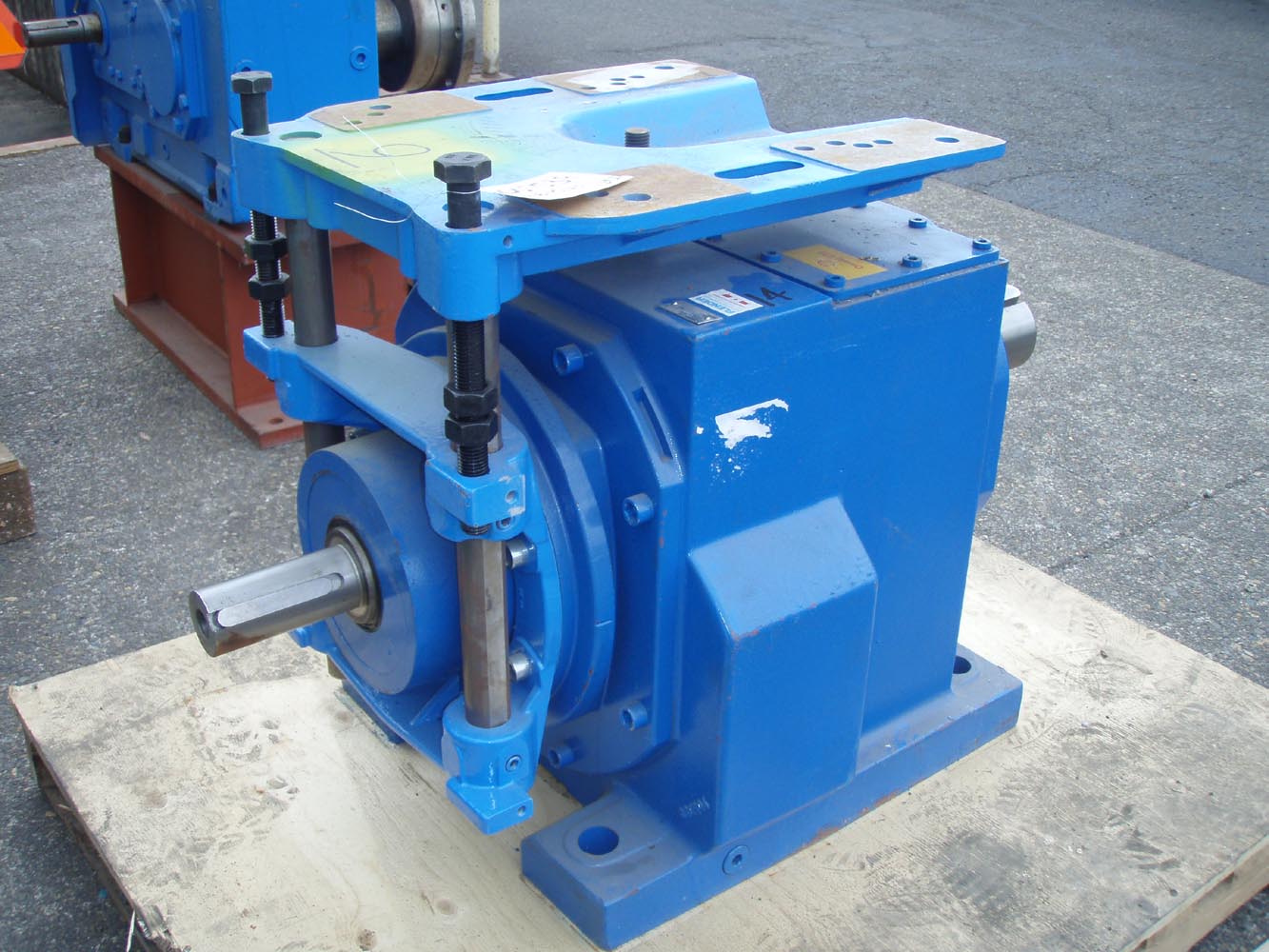

Click on images for larger view.
