- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FLENDER Our ID No.      007540
Model:      H2 SH 7A Ratio:      11.807 (12.5)
MO# or S/N      4159548-00210-001 Alt. S/N      481.403.303
IP Speed      n1 1500 HP rating      93.20kW Cat. Rating
OP Speed:      n2 127.04 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      173,318 Lb-Inches Shaft Diameters High Speed:  50mm (1.968)
Low Speed:  120mm (4.724)
Weight      1,200 Lbs Approx. Assembly      A
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.807 (12.5)

148 RPM
407 HP
1430 RPM
121 RPM
339 HP
1170 RPM
99 RPM
272 HP
870 RPM
RPM
HP
720 RPM
RPM
HP
580 RPM
RPM
HP
Notes:
Condition:
Unused Surplus Customer should perform their own ratings analysis for use or consult with the manufacturer for suitablity of use for the application.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

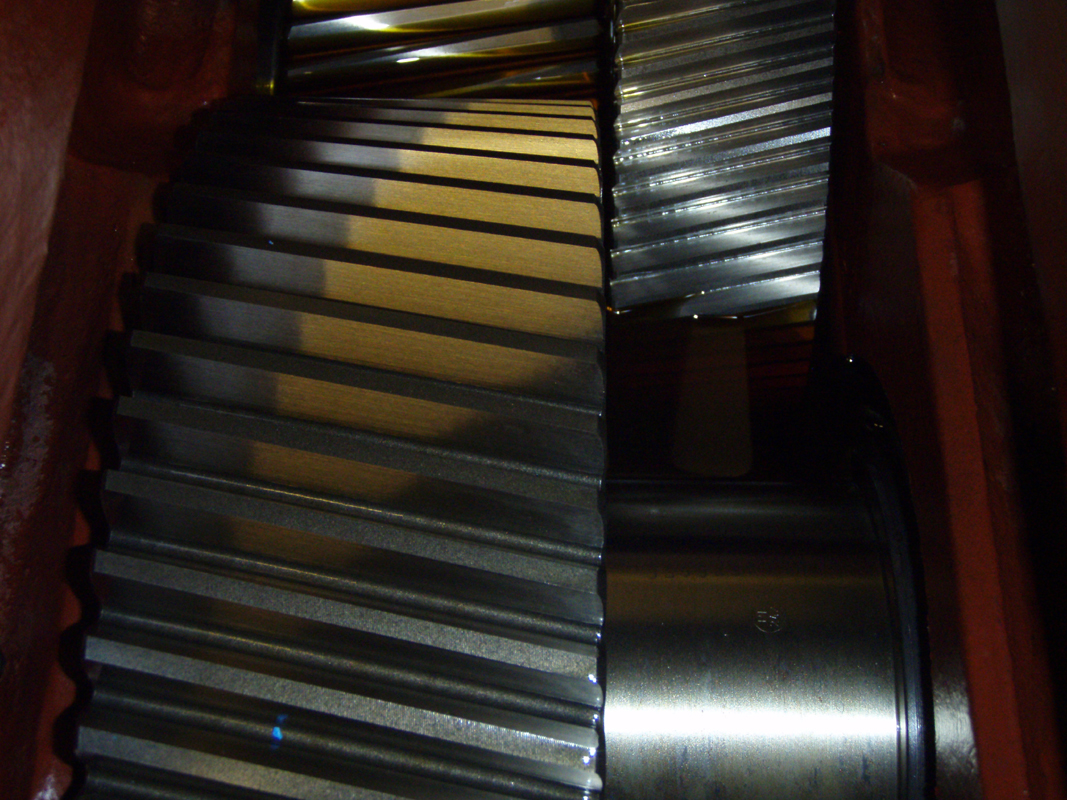

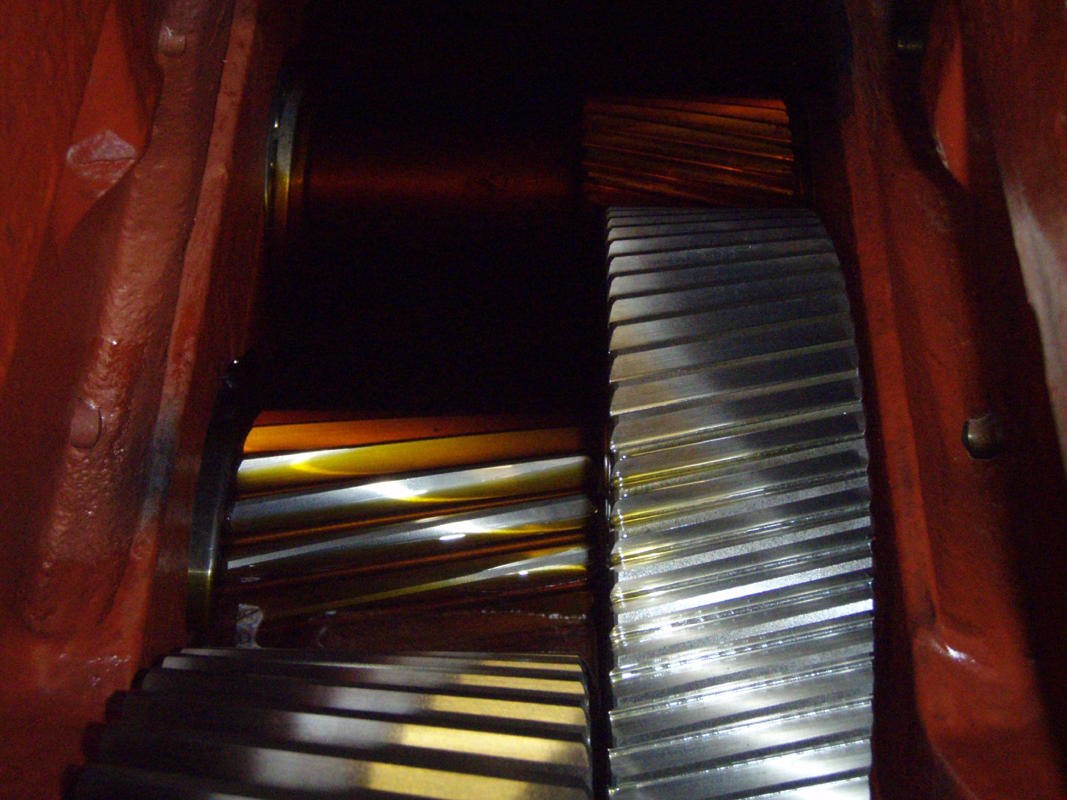

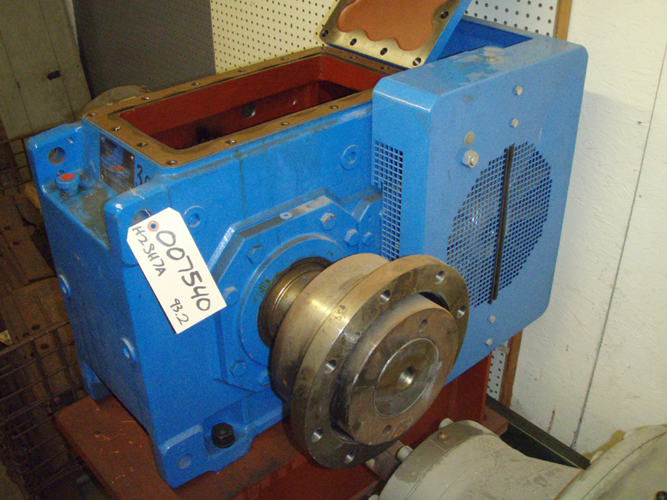

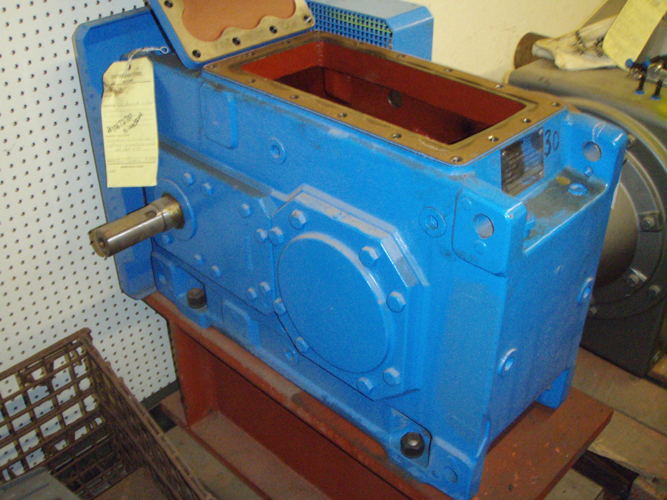

Click on images for larger view.
