Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

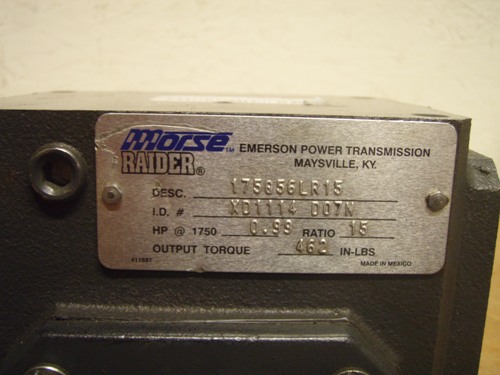

N A M E P L A T E       D A T A
Manufacturer:      MORSE RAIDER Our ID No.      007561
Model:      175Q56LR15 Ratio:      15:1
MO# or S/N      XD1114D07N Alt. S/N
IP Speed      1750 HP rating      0.99 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      462 Shaft Diameters High Speed:  56C   0.625
Low Speed:
Weight      27 LBS Assembly      LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
15:1
 116.6 RPM
 0.99 HP
1170
 72.3 RPM
 0.77 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

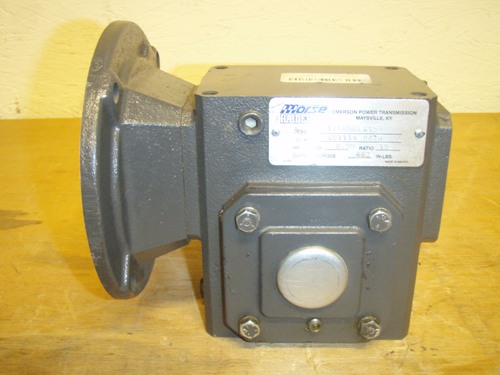

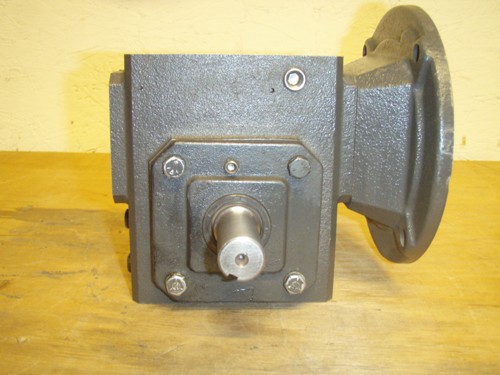

Click on images for larger view.
