- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      008002
Model:      1110YF1-K
Ratio:      6.227
MO# or S/N      8-265749-01 Alt. S/N
IP Speed      1750 HP rating      500 Cat. Rating
OP Speed:      281 SF / SC      1.71
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      192,000 Lb-Inches Shaft Diameters High Speed:  3.250
Low Speed:  5.500
Weight      2,700 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.227:1

280 RPM
855 HP
1430 RPM
230 RPM
711 HP
1170 RPM
190 RPM
592 HP
870 RPM
140 RPM
450 HP
720 RPM
115 RPM
377 HP
580 RPM
95 RPM
308 HP
Notes:
Condition: USED


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

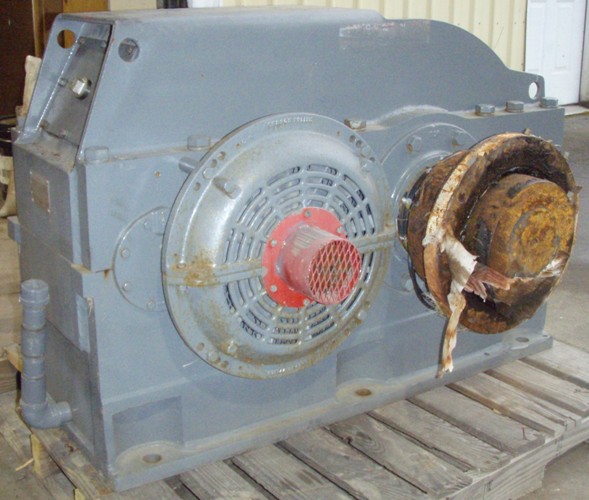

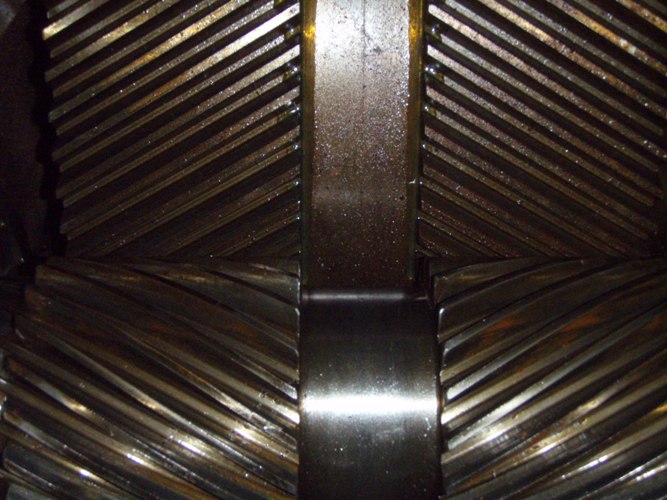

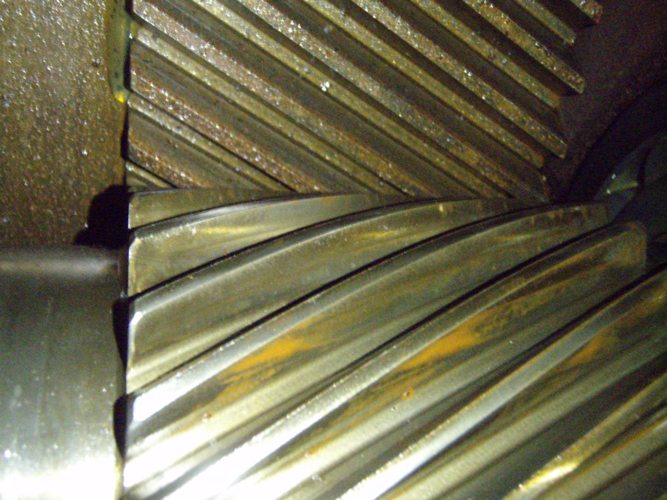

Click on images for larger view.
