- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK RAM Right Angle Mixer Drive Our ID No.      008020
Model:      700MDXD2-AZ
 		Ratio:      25.58
MO# or S/N      95-066912-04 Alt. S/N
IP Speed      1750 HP rating      75 Cat. Rating
OP Speed:      68 SF / SC      1.25
Date      04-95 Oil Capacity      22
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      90,589 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  5.750
Weight       2080 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
25.58:1

69.2 RPM
100 HP
1430 RPM
56.6 RPM
86.4 HP
1170 RPM
46.3 RPM
75.1 HP
870 RPM
34.4 RPM
56.2 HP
720 RPM
28.5 RPM
46.6 HP
580 RPM
22.9 RPM
37.5 HP
Notes:
Condition: Unused


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

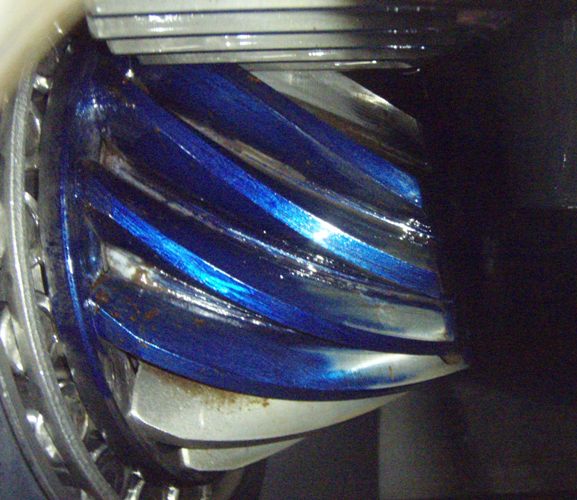

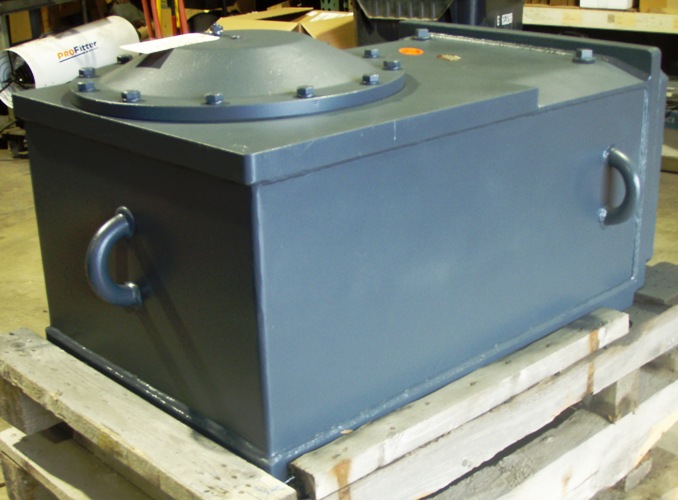

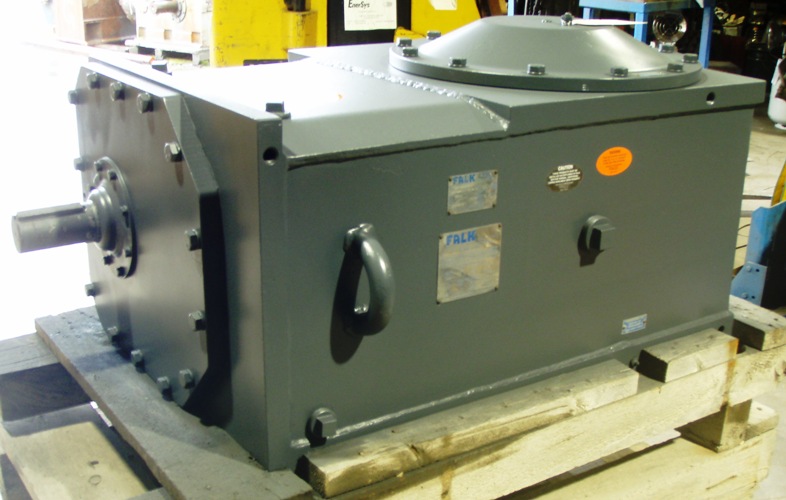

Click on images for larger view.
