Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

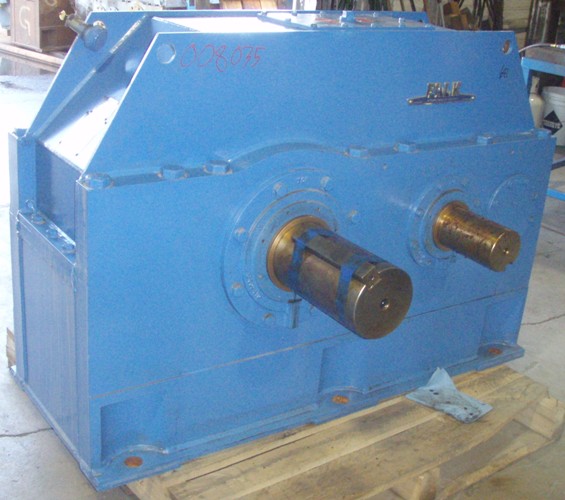

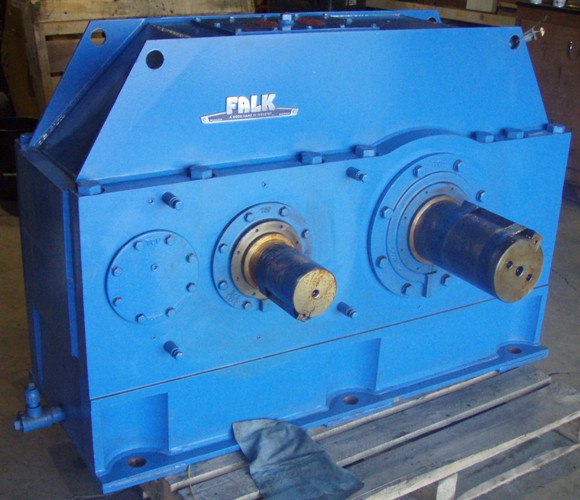

Manufacturer:      FALK Our ID No.      008035
Model:      2130Y1-LS
 		Ratio:      1.830
MO# or S/N      99-065235-01 Alt. S/N
IP Speed      857 HP rating      863 Cat. Rating
OP Speed:      468.3 SF / SC      2.31
Date      02-00 Oil Capacity      37.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      256,000 Lb-Inches Shaft Diameters High Speed:  4.500
Low Speed:  6.500
Weight       5,000 Lbs Approx. Assembly       13
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1.83:1

950 RPM
HP
1430 RPM
780 RPM
HP
1170 RPM
640 RPM
2597 HP
870 RPM
470 RPM
1996 HP
720 RPM
390 RPM
1683 HP
580 RPM
320 RPM
1385 HP
Notes:
Condition: Used - excellent


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
