Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||

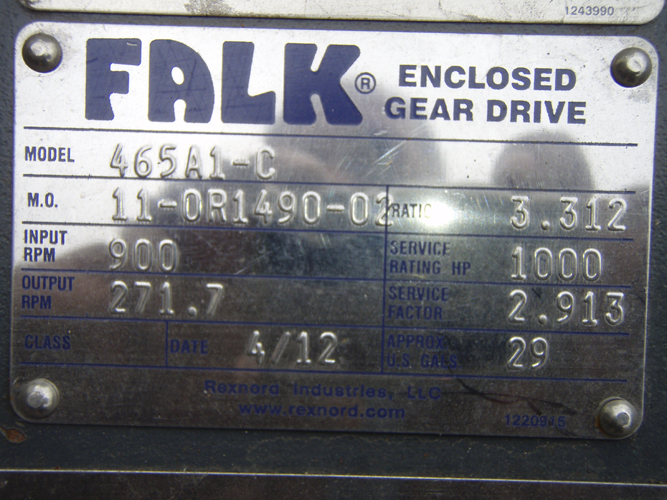

Manufacturer: | FALK REXNORD | Our ID No. | 008117 | ||||||||||||||||||||||||||||||||
Model: | 465A1C | Ratio: | 3.312 | ||||||||||||||||||||||||||||||||
MO# or S/N | 11-0R1490-02 | Alt. S/N | |||||||||||||||||||||||||||||||||
IP Speed | 900 | HP rating | 1000 | Cat. Rating | See Below | ||||||||||||||||||||||||||||||
OP Speed: | 271.7 | SF / SC | 2.913 | ||||||||||||||||||||||||||||||||
Date | 4/12 | Oil Capacity | 29 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Torque Rating | 510,000 Lb-Inches | Shaft Diameters |
High Speed:
5.500 Low Speed: 7.250 |
||||||||||||||||||||||||||||||||
Weight | 4,000 Lbs Approx. | Assembly | 1 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Notes: |
Condition: Unused Surplus |
||||||||||||||||||||||||||||||||||
|

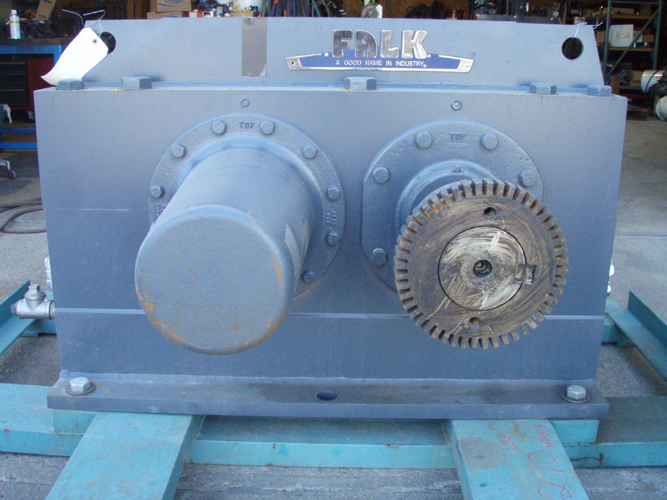

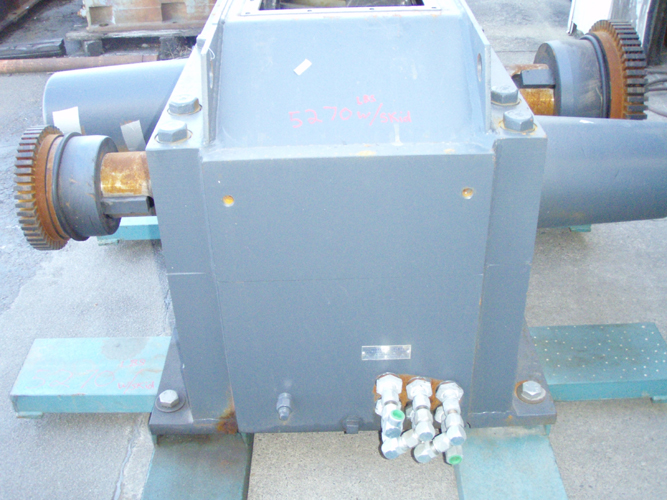

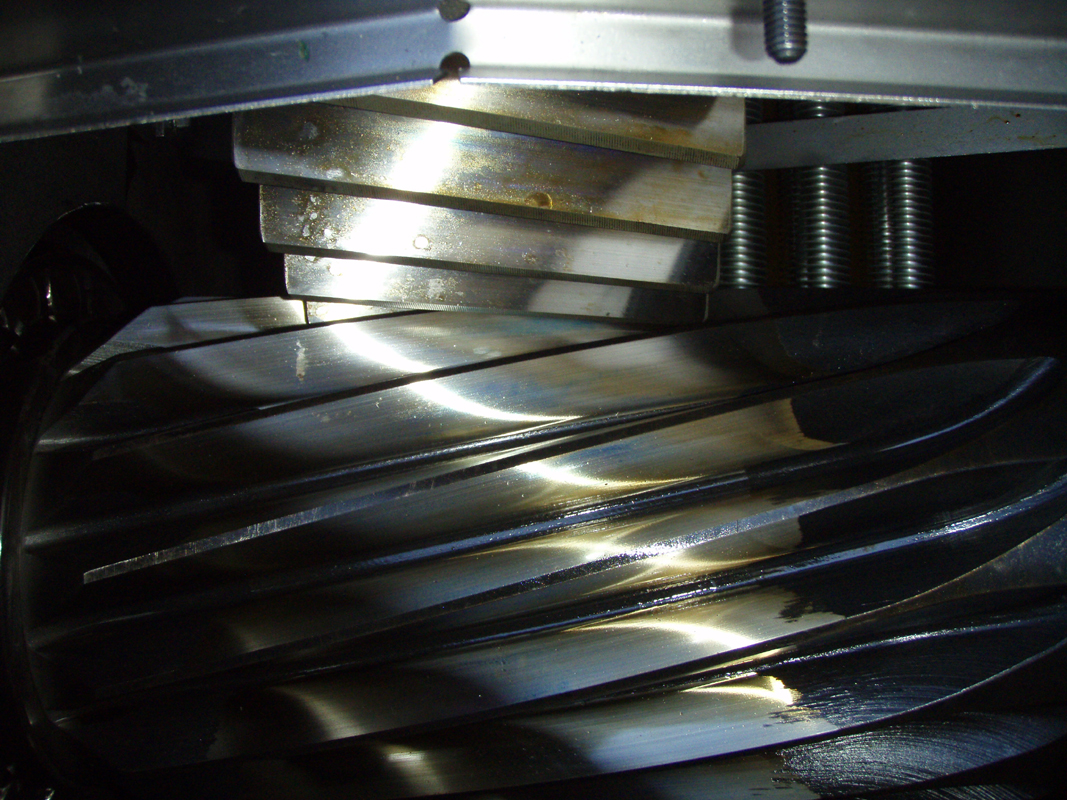

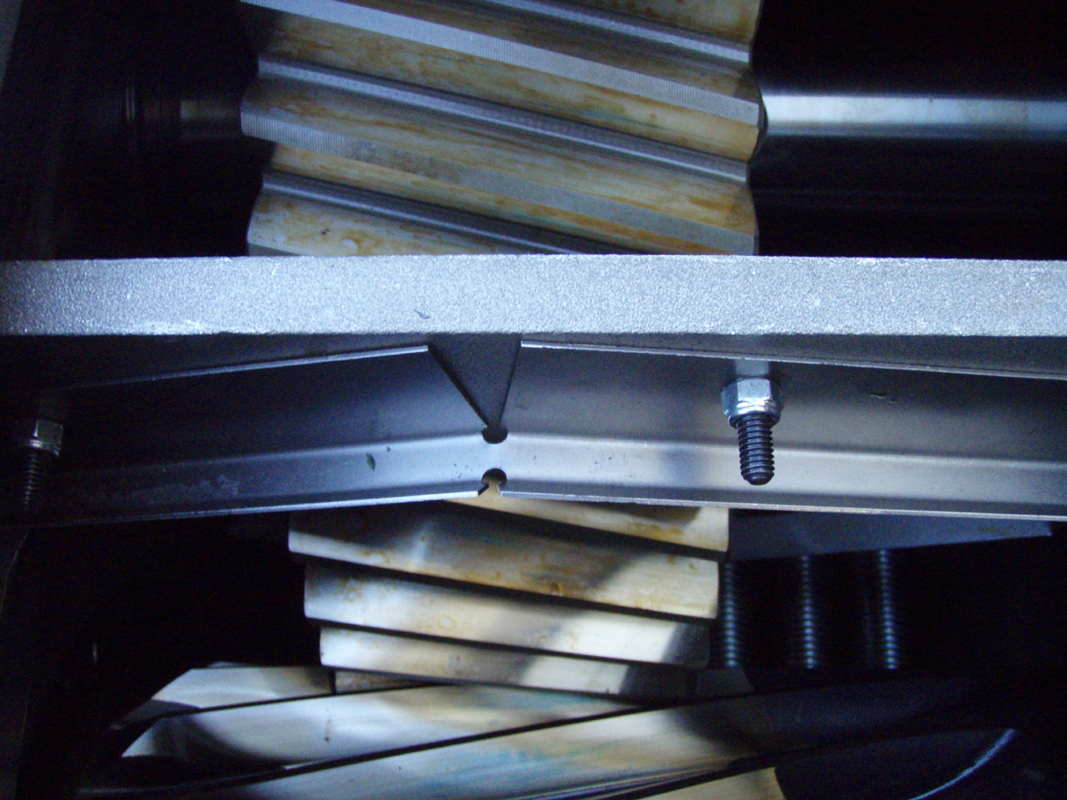

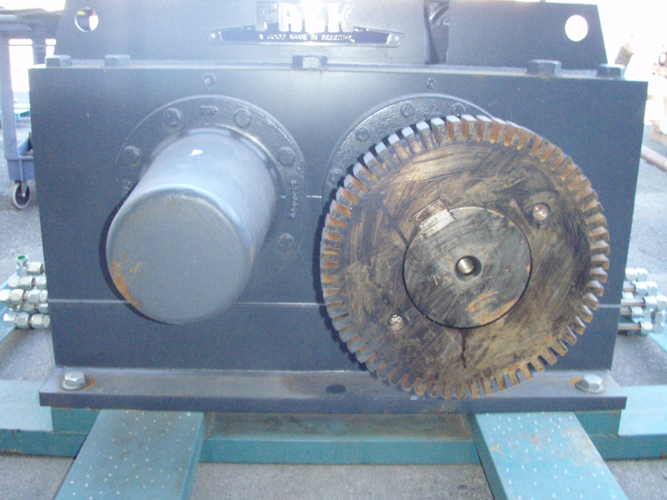

Click on images for larger view. |
