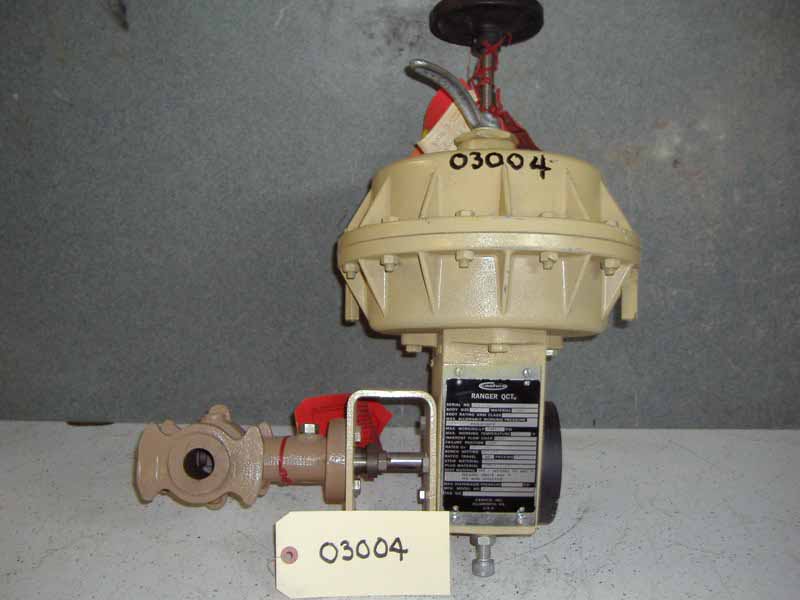

CASHCO INC.
Ranger QCT
Serial # 9008-00-90
Body size 1"       Material Iron
Body rating ANSI class 300
Max. allowable working pressure 640 PSIG @ 100 deg. F
Max. working P 1000 PSI
Max. working temperature 650 deg. F
Inherent flow char. Linear
Failure position Close
Rated Cv 14.0
Bench setting 5-13 PSIG
Rated travel 90 deg.
Packing TFE
Stem material 17-4 PH
Plug material 17-4 PH      CR      PLTD
Seat material TFE + inconel to 450 deg. F inconel above 450 deg. F TFE non-effective
Max diaphragm pressure 25 PSI
Mfg. model # RA

Click on images for larger view.
