- Speed Reducer Data Sheet -
Manufacturer:      FALK Our ID No.      002111
Model:      1100FC2A Ratio:      31.82:1
MO# or S/N      8-3A1306 Alt. S/N
IP Speed      1256 RPM HP rating      See Below
OP Speed:      39.5 RPM Cat. Rating
Oil Capacity      20.0 US GALS SF / SC      1.66 SF
Torque Rating      131,000 Pound-Inches Shaft Diameters High Speed:  2.750
Low Speed:  4.500
Weight      1,500 Lbs Approx Date
Notes:

Good Take Out

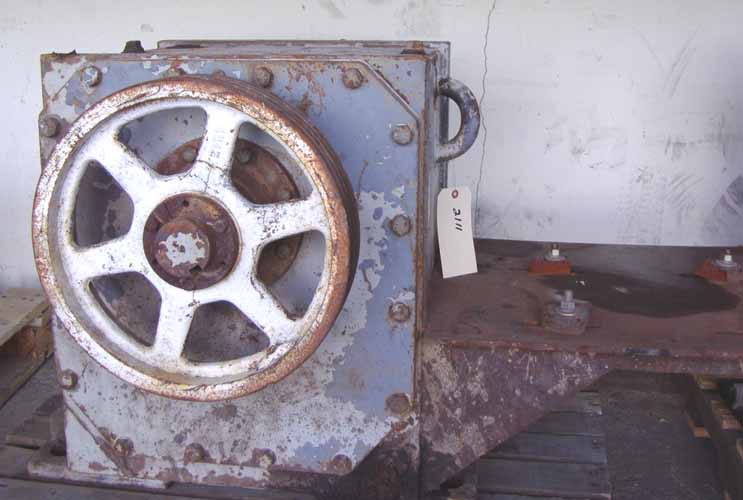

Unit has a bracket welded to side of housing for belt drive

Additional Catalog ratings at different input speeds:
1750 RPM = 114 HP
1430 RPM = 94.1 HP
1170 RPM = 77.5 HP
870 RPM = 58.2 HP
720 RPM = 48.4 HP
580 RPM = 39.2 HP




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071

E-mail: 2sales@TheGearboxGuys.com
Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff         e-mail:   jklistof@TheGearboxGuys.com

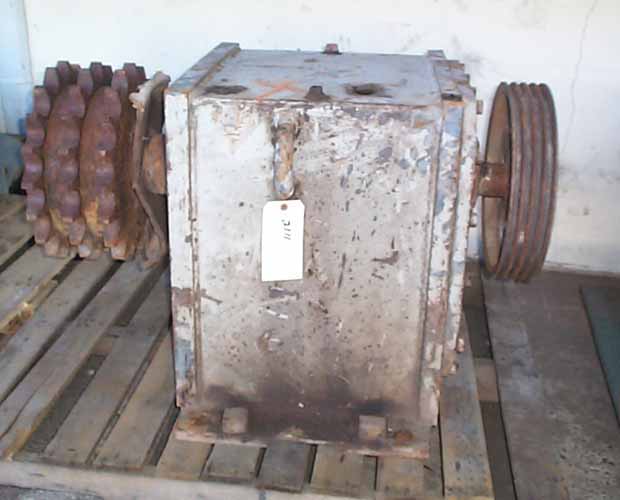

Click on images for larger view.
