Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

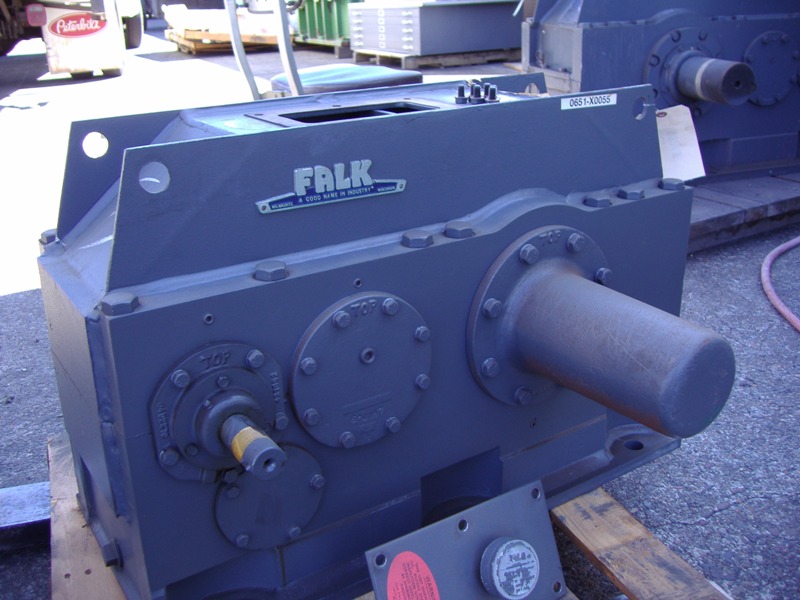

Manufacturer:      Falk Our ID No.      005243
Model:      2070Y3-LD Ratio:      154.3:1
MO# or S/N      9-066311 Alt. S/N
IP Speed      1750 RPM HP rating      10 HP Cat. Rating
OP Speed:      11.3 RPM SF / SC      1.25 - SF
Date      6/90 Oil Capacity      5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      69,400 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  3.500
Weight      900 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
154.3:1

11
12.5 HP
1430
9
10.3 HP
1170
7.5
8.45 HP
870
5.5
6.35 HP
720
4.5
5.28 HP
580
3.8
4.28 HP
Notes:

Condition: NEW SURPLUS
