Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Foote-Jones Our ID No.      005291
Model:      0802-BHE Ratio:      20.93:1
MO# or S/N      310053 Alt. S/N      Frame BHE-1-0802-LC
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date      2/95 Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      43,700 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  3.500
Weight      850 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
20.93:1

84
60.0 HP
1170
56
41.0 HP
870
42
31.3 HP
720
34
26.3 HP
580
28
21.3 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

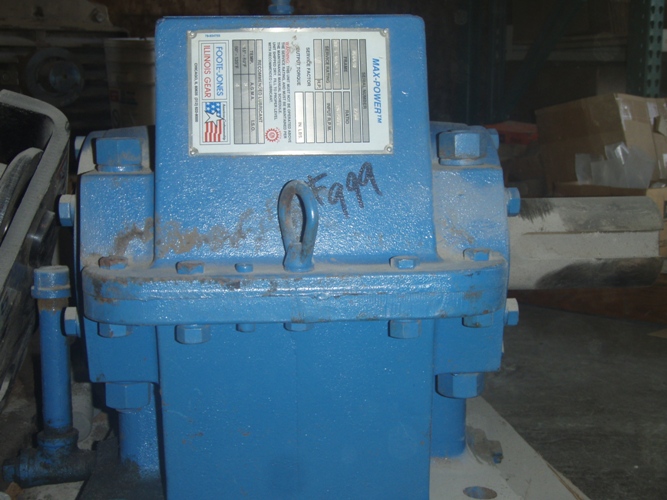

Click on images for larger view.
