Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005329
Model:      2120Y2A Ratio:      14.25:1
MO# or S/N      6-660763-01 Alt. S/N
IP Speed      1730 RPM HP rating      250 HP Cat. Rating      413 HP
OP Speed:      121 RPM SF / SC      1.65 - SF
Date       Oil Capacity      12 US Gals
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      237,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  6.000
Weight      3,500 Lbs Approx. Assembly      Parallel, Assembly #1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
14.25:1

125 RPM
462 HP
1430 RPM
100 RPM
386 HP
1170 RPM
84 RPM
325 HP
870 RPM
62 RPM
251 HP
720 RPM
50 RPM
210 HP
580 RPM
42 RPM
175 HP
Notes:
Condition: Rebuilt Surplus



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

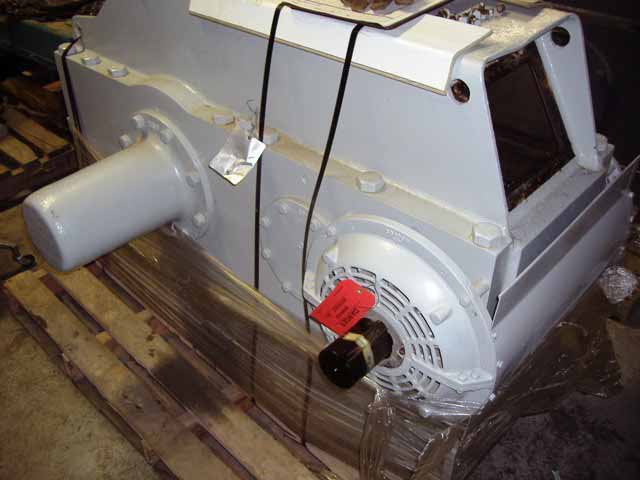

Click on images for larger view.
