Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Foote Jones Our ID No.      005413
Model:      1502HLD Ratio:      25.6:1
MO# or S/N      386303-1 Alt. S/N
IP Speed      1750 RPM HP rating      278 HP Cat. Rating
OP Speed:      68 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       Shaft Diameters High Speed:  3.000
Low Speed:  6.500
Weight       Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
25.6:1

68
278 HP
1170
45
194 HP
870
34
148 HP
720
28
124 HP
580
22
102 HP
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

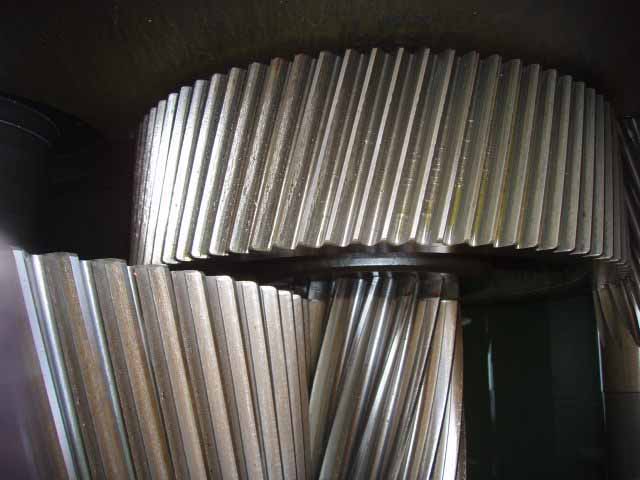

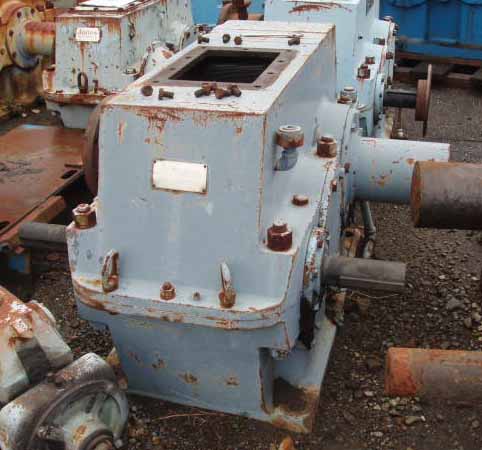

Click on images for larger view.
