Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      DODGE Our ID No.      005543
Model:      C262B20N180L1
     180C262B020L1A 		Ratio:      20:1
MO# or S/N      5801050073DD Alt. S/N      TWMA0001
IP Speed      1750 RPM HP rating      5.43 HP Cat. Rating
OP Speed:      86 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      3610 Lb-Inches Shaft Diameters High Speed:  180TC, Solid
Low Speed:  1.500, Solid
Weight       Assembly      Right Angle Worm Helical, 180TC, 1.500 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
20:1

86
5.43 HP
1430
71
5.07 HP
1170
57
4.65 HP
870
42
4.03 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

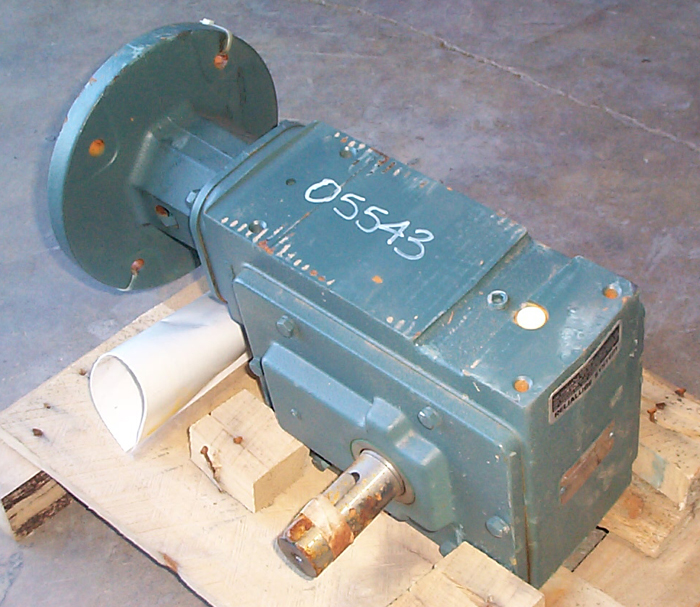

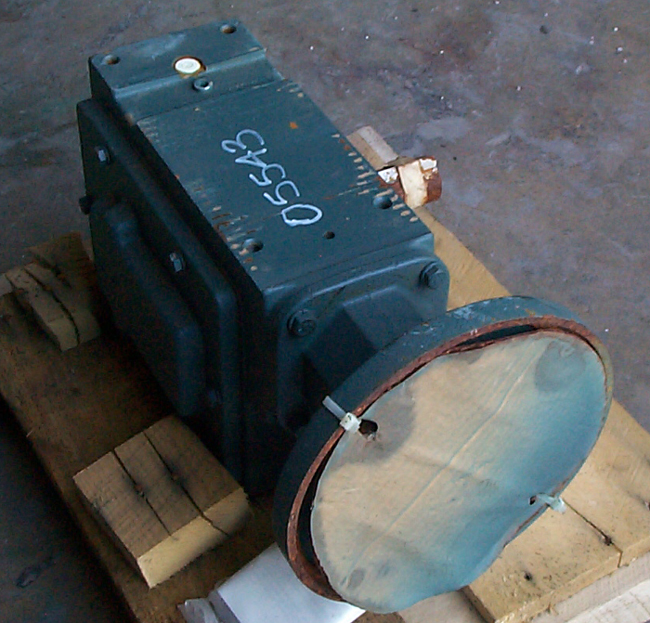

Click on images for larger view.
