- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

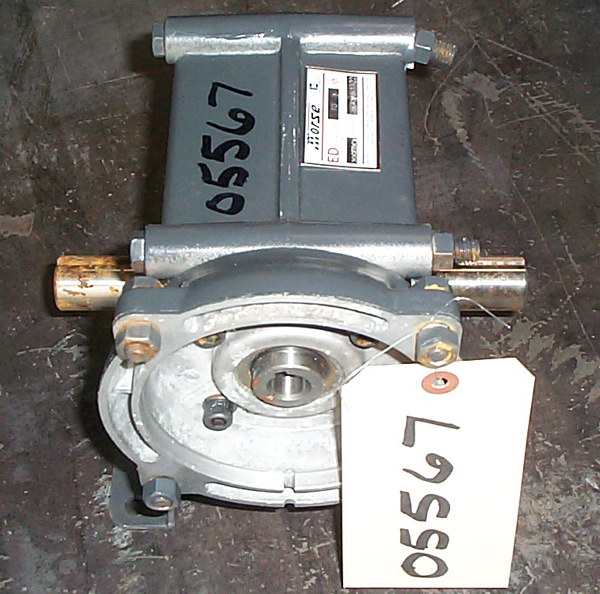

Manufacturer:      Morse Our ID No.      005567
Model:      20GEDC Ratio:      10:1
MO# or S/N       Alt. S/N      G06KMK1922
IP Speed      1750 RPM HP rating      1.92 HP Cat. Rating
OP Speed:      175 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      616 Lb-Inches Shaft Diameters High Speed:  56C, Hollow
Low Speed:  1.00, Solid
Weight      15 Lbs Approx. Assembly      Right Angle Worm, 56C, 1.000 Solid Double
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
10:1

175
1.92 HP
1170
117
1.52 HP
Notes:

Condition: NEW SURPLUS
