Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

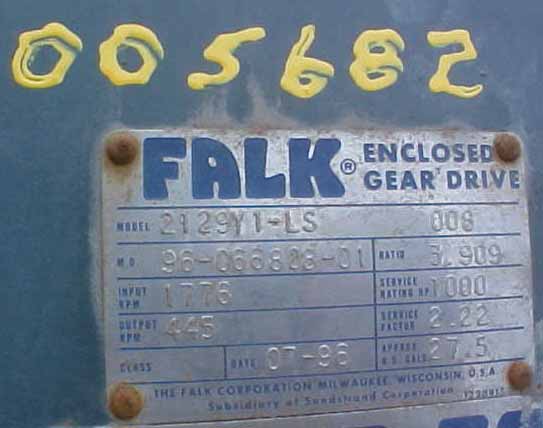

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005682
Model:      2129Y1-LS Ratio:      3.909:1
MO# or S/N      96-066808-01 Alt. S/N
IP Speed      1776 RPM HP rating      1000 HP Cat. Rating
OP Speed:      445 RPM SF / SC      2.22 - SF
Date      7/96 Oil Capacity      27.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      285,000 Lb-inches Shaft Diameters High Speed:  4.000
Low Speed:  6.000
Weight      3500 Lbs Approx. Assembly      Parallel, #18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
3.909:1

448 RPM
2220 HP
1430 RPM
366 RPM
1800 HP
1170 RPM
299 RPM
1490 HP
870 RPM
222 RPM
1130 HP
720 RPM
184 RPM
950 HP
580 RPM
148 RPM
780 HP
Notes:
Condition: USED, Excellent Condition



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

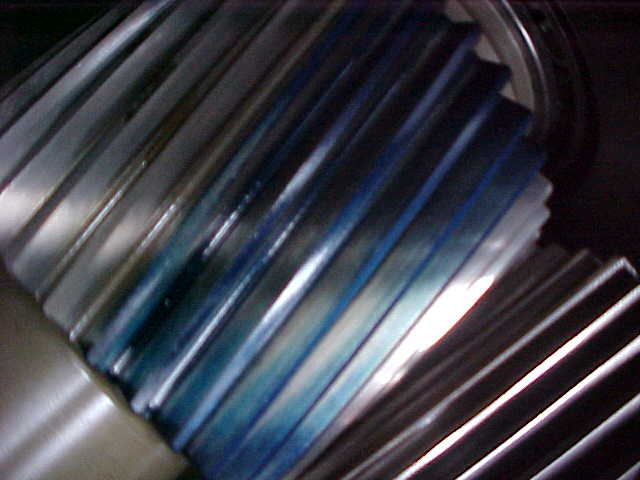

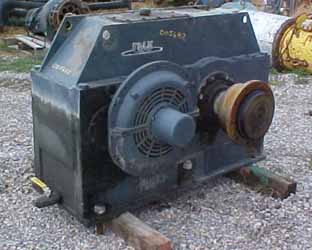

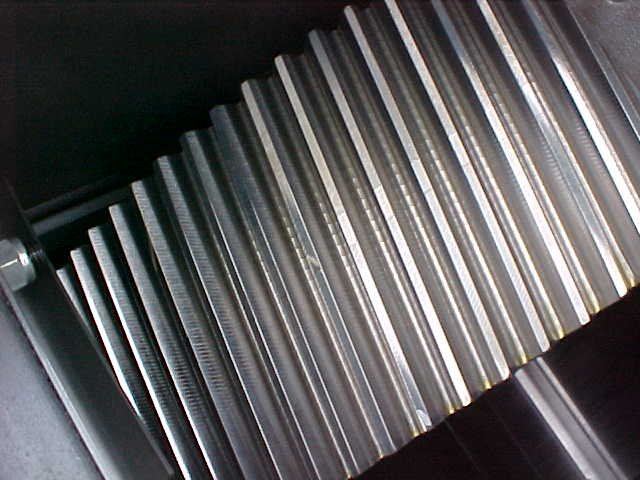

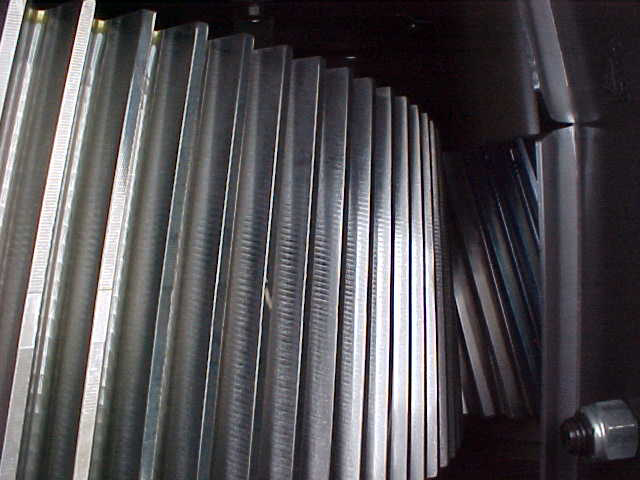

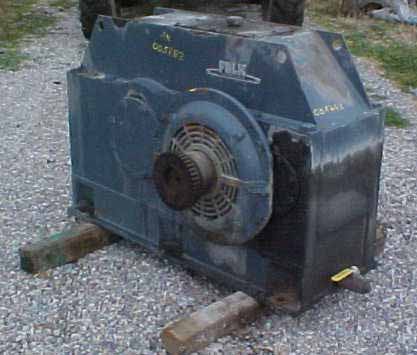

Click on images for larger view.
