Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005690
Model:      2140Y3-B Ratio:      52.2:1
MO# or S/N      92-069056 Alt. S/N
IP Speed      1750 RPM HP rating      200 HP Cat. Rating
OP Speed:      33.5 RPM SF / SC      1.4 - SF
Date      5/92 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      549,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  7.250
Weight      7420 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
52.2:1

30 RPM
259 HP
1430 RPM
25 RPM
225 HP
1170 RPM
20 RPM
188 HP
870 RPM
15.0 RPM
142 HP
720 RPM
12.5 RPM
118 HP
580 RPM
10.0 RPM
95.5 HP
Notes:
Condition: USED surplus



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

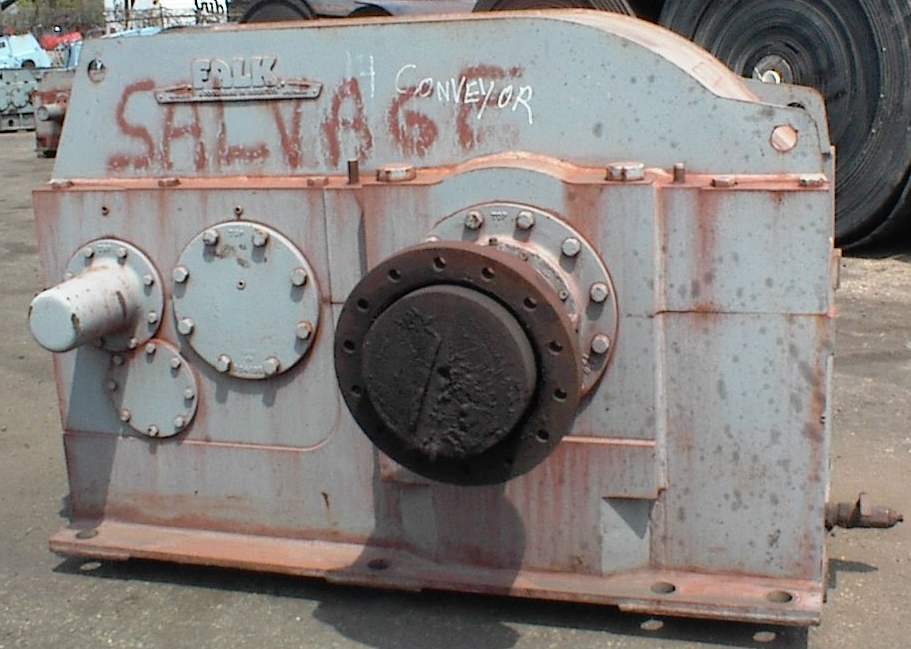

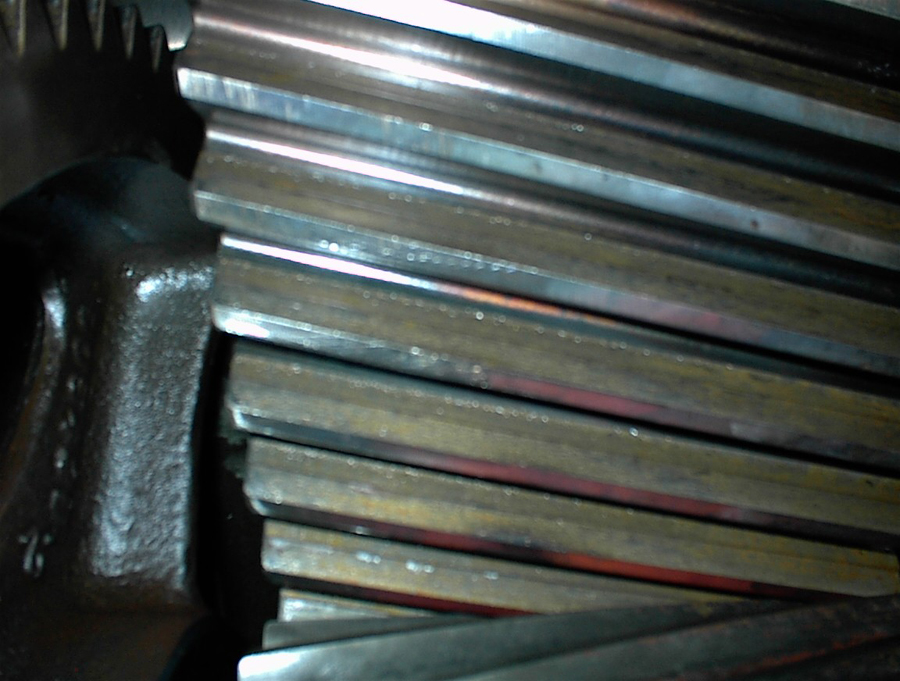

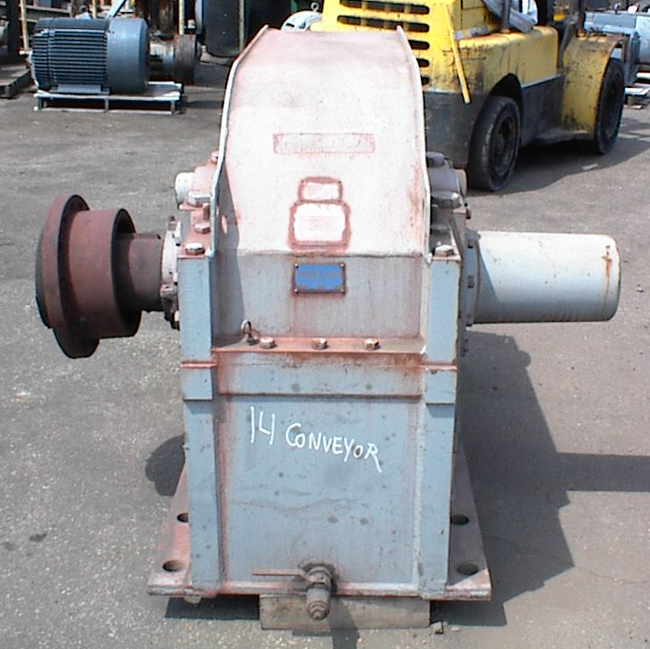

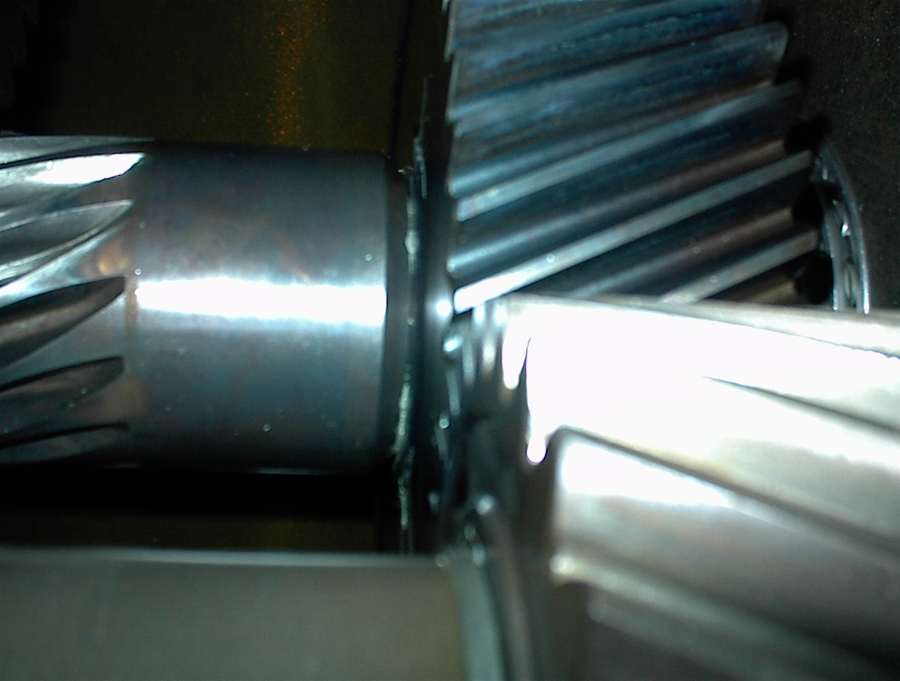

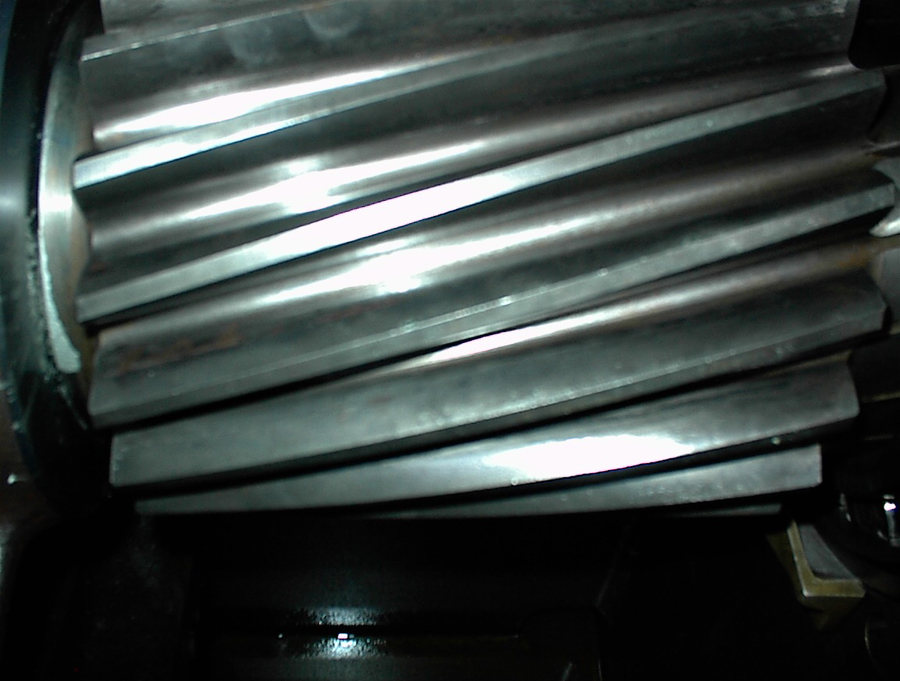

Click on images for larger view.
