- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005693
Model:      2120YB3-LD Ratio:      50.61:1
MO# or S/N      91-066533 Alt. S/N
IP Speed      1750 RPM HP rating      125 HP Cat. Rating
OP Speed:      34.5 RPM SF / SC      1.69 - SF
Date      11/91 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      307,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  6.000
Weight      3520 Lbs Approx. Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
50.61:1

37 RPM
183 HP
1430 RPM
30 RPM
150 HP
1170 RPM
25 RPM
122 HP
870 RPM
18 RPM
91.1 HP
720 RPM
15 RPM
75.4 HP
580 RPM
12.5 RPM
60.8 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

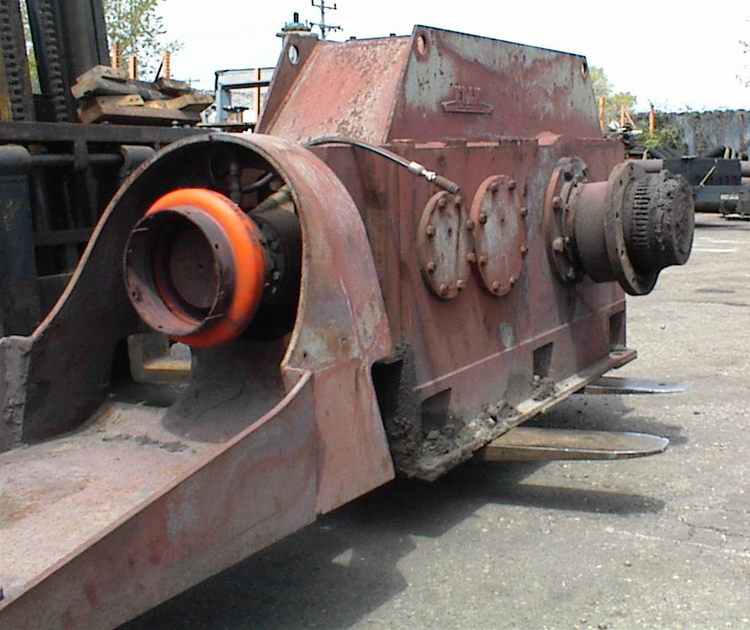

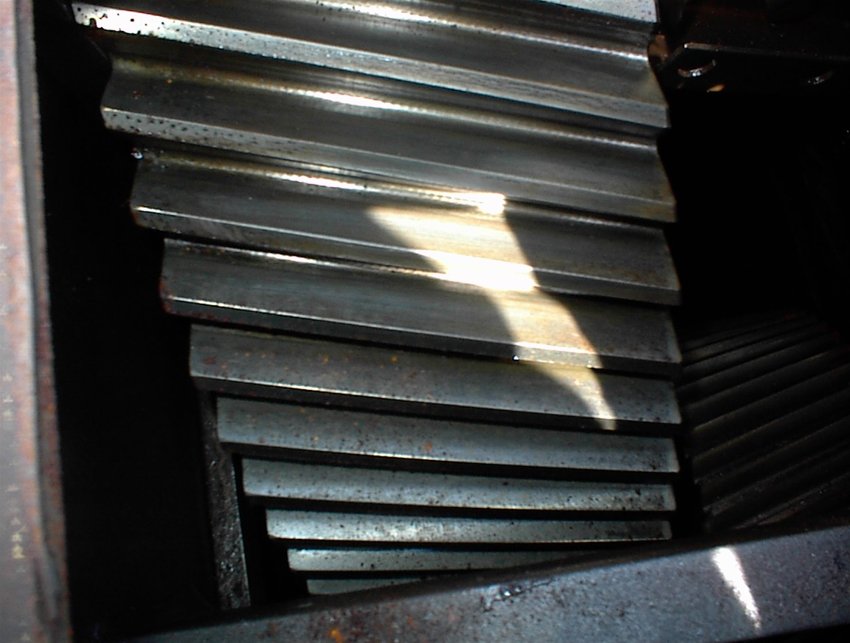

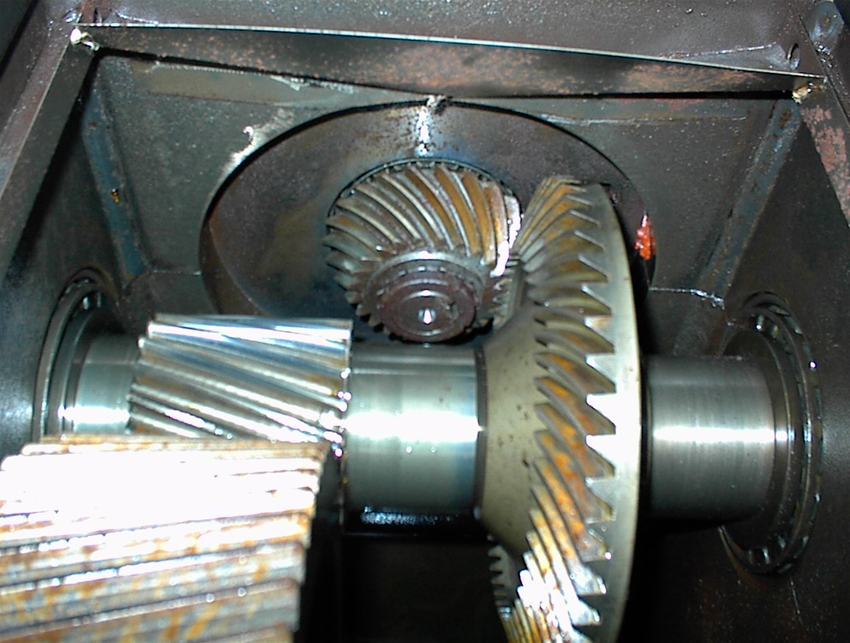

Click on images for larger view.
