Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005727
Model:      2110YT3-LD Ratio:      72.07:1
MO# or S/N      8-666441 Alt. S/N
IP Speed      1750 RPM HP rating      50 HP Cat. Rating
OP Speed:      24.3 RPM SF / SC      2.02 - SF
Date      1/87 Oil Capacity      21
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      262,000 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  5.500
Weight      2700 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
72.07:1

25 RPM
101 HP
1430 RPM
20 RPM
84.0 HP
1170 RPM
16.5 RPM
69.6 HP
870 RPM
12.5 RPM
52.6 HP
720 RPM
10.0 RPM
44.0 HP
580 RPM
8.3 RPM
35.8 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

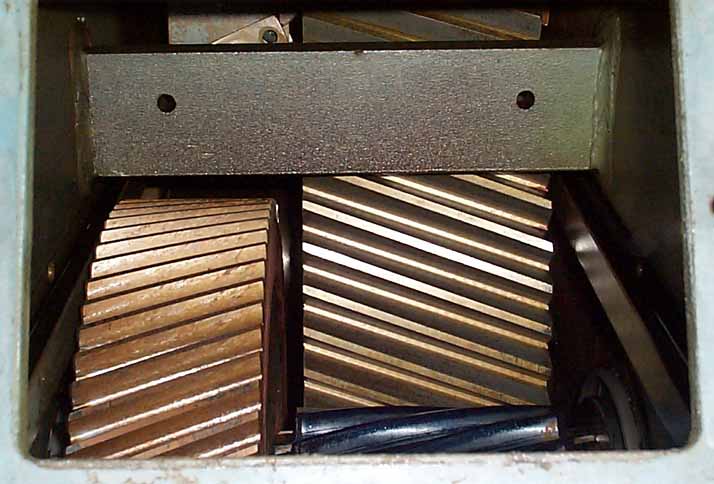

Click on images for larger view.
