SEW-EURODRIVE DATA SHEET

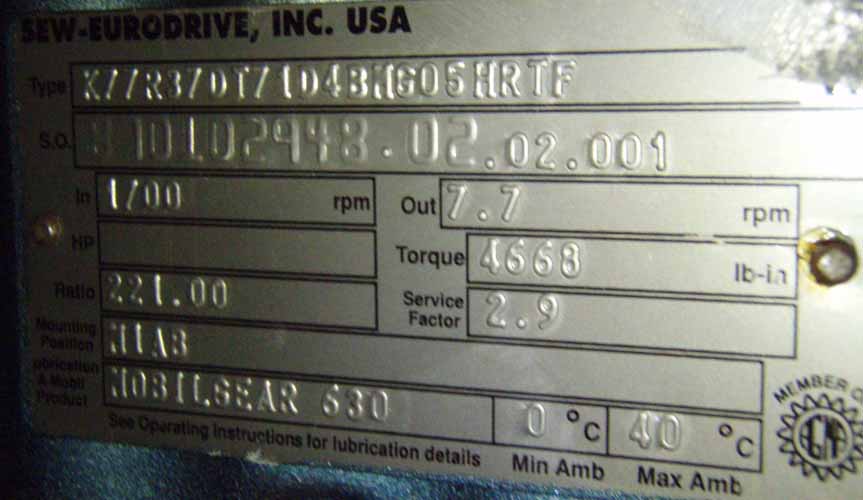

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K77R37DT71D4BMG05HRTF Our ID No.      005785
SO#      870102948.02.02.001
Input RPM      1700 Output RPM      7.7
HP       Torque      4,668 lb-in
Ratio:      221.00 Service Factor      2.9
Mounting Pos      M1AB

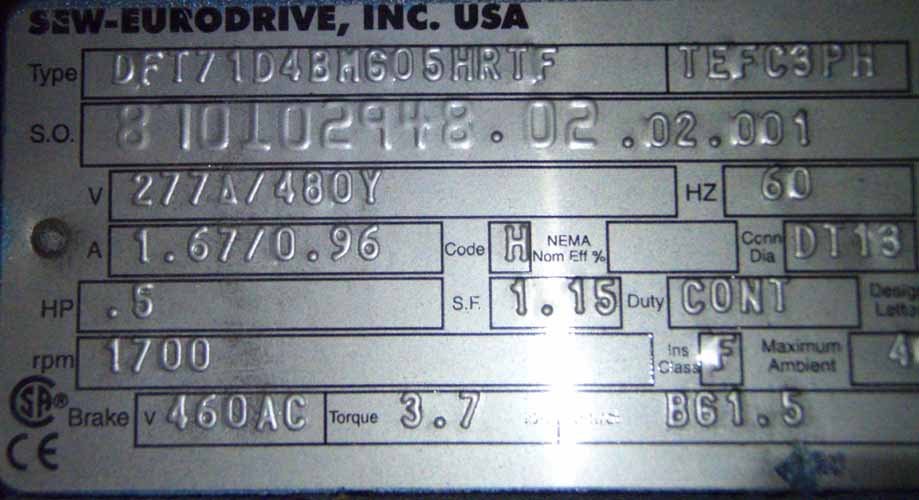

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71D4BMG05HRTF Enclosure:      TEFC 3PH
SO#      870102948.02.02.001
Volts      277 / 480 HZ      60
Amps      1.67 / 0.96 Code      G Nom Eff       Conn Dia.      DT13
HP      0.50 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1700 Ins Class      F Max Amb      40
Brake V      480AC Torque      3.7 lb-ft Control      BG1.5
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  55mm
Notes:
Condition:


NEW SURPLUS
