Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

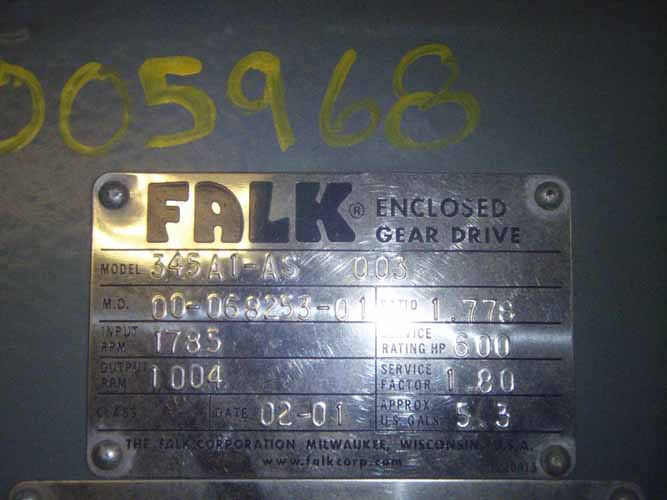

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005968
Model:      345A1AS Ratio:      1.778
MO# or S/N      00-068253-01-003 Alt. S/N
IP Speed      1785 RPM HP rating      600 HP Cat. Rating
OP Speed:      1004 RPM SF / SC      1.80 SF
Date      02-01 Oil Capacity      5.3 US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      67,760 Lb-Inches Shaft Diameters High Speed:  2.375
Low Speed:  3.500
Weight      850 Lbs Approx. Assembly      Assembly 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with cooling tubes
1750 RPM
1.778:1

984 RPM
1058 HP
Unit has cooling tubes
exceeds mechanical HP rating
1430 RPM
804 RPM
864 HP
1170 RPM
658 RPM
706 HP
870 RPM
489 RPM
525 HP
720 RPM
405 RPM
434 HP
580 RPM
326 RPM
349 HP
Notes:
Condition:
NEW Surplus


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
