Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

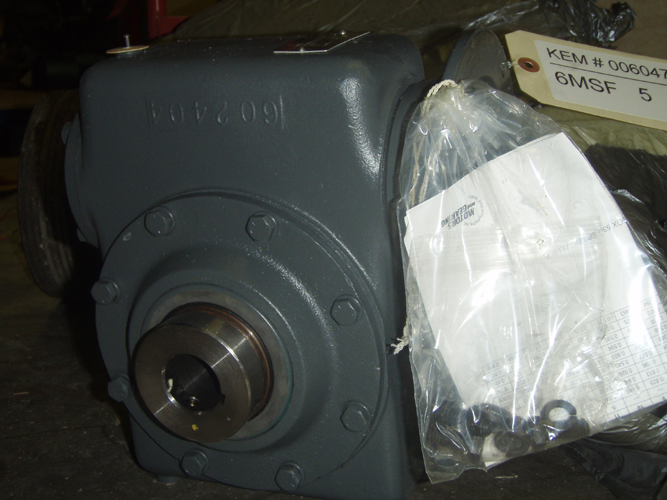

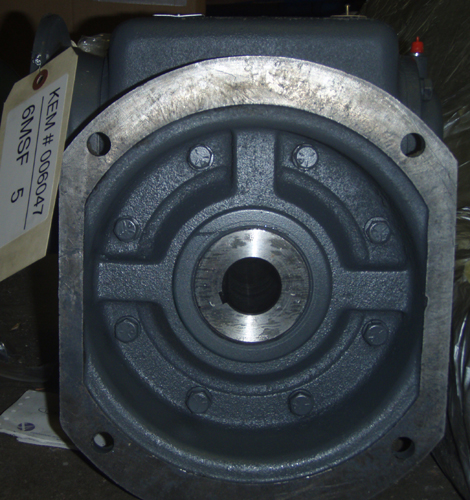

Manufacturer:      WINSMITH WORM GEAR REDUCER Our ID No.       006047
Model:       6MSF Ratio:       5
S/N       006MSFS32220A8 Center Distance       3.500
IP Speed      1750 HP rating       8.31
OP Speed:       350 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       1,383 Lb-Inches Shaft Diameters High Speed:   143TC .875"
Low Speed:   1.375"
Weight       80 Lbs Approx. Assembly       DR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5:1

350 RPM
8.31 HP
1170 RPM
234 RPM
6.81 HP
Notes:
   UNUSED SURPLUS
