Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

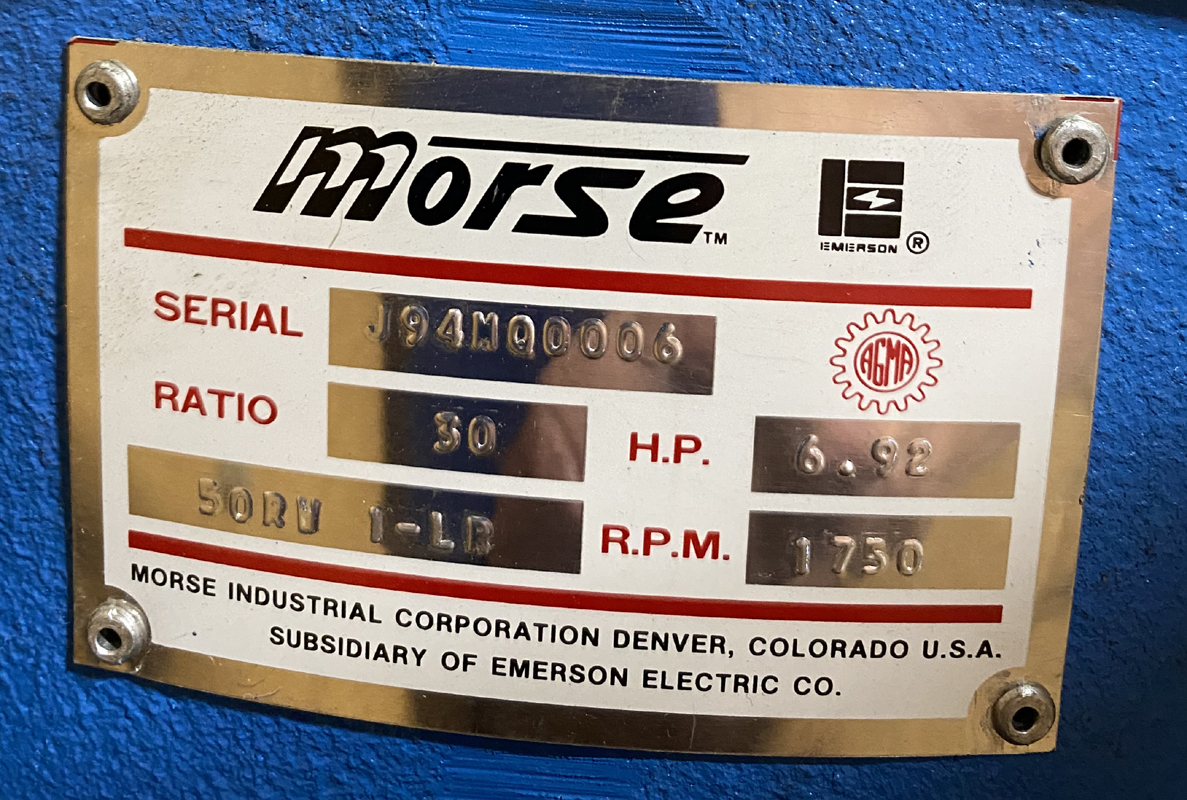

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.      006812
Model:      50RW
     50RW30 		Ratio:      30
S/N       Center Distance      5.00
IP Speed      1750 HP rating      6.92
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      6224 Lb-Inches Shaft Diameters High Speed:1.375
Low Speed:2.375
Weight      250 Lbs Approx. Assembly      T1R or B1L
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
30:1

58 RPM
6.92 HP
1170 RPM
38 RPM
5.92 HP
870 RPM
29 RPM
5.36 HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
