Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007202
Model:      2100Y1L Ratio:      5.471
MO# or S/N      92066440-01 Alt. S/N
IP Speed      1150 HP rating      250 Cat. Rating
OP Speed:      210 SF / SC      1.84
Date      09/92 Oil Capacity      7.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      126,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2,100 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
5.471

310 RPM
641 HP
276 HP
1430 RPM
255 RPM
543 HP
336 HP
1170 RPM
210 RPM
459 HP
402 HP
870 RPM
155 RPM
357 HP
Exceeds catalog HP rating
720 RPM
130 RPM
304 HP
580 RPM
105 RPM
251 HP
Notes:
Condition:
USED

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

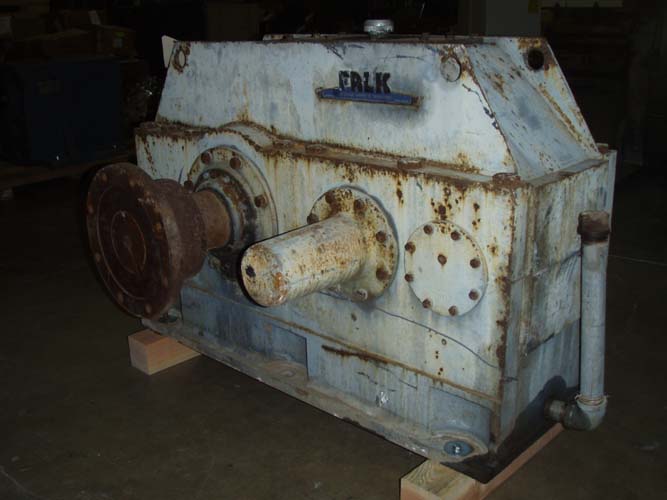

Click on images for larger view.
